Tactical Media Broadcast Hub — User Manual v2

Your platform. Their feeds. No algorithm in between.

Build documented	commit 6d5dc7e (main), web production build
Verified on	2026-10-07, against a running API, Postgres, Redis and Temporal
Screenshots	docs/manual/screenshots/ (1440×900 desktop, 390×844 mobile)
Method	Every claim marked live was exercised end-to-end. See §15 Capability table

How to read this manual. Each feature has one of four labels:

• live: we ran a real round-trip through the UI and/or the API and checked the result.
• sample data: the screen shows built-in fixtures. Sometimes that happens only when the API is unreachable, and sometimes it always happens (this is noted).
• partial: the request works, but part of the pipeline behind it isn't wired yet.
• stub: a placeholder screen or an inert control.

Nothing in this manual is described as working unless we exercised it.

---

Contents

1. Quickstart
2. The shell: sidebar, session bar, command palette
3. Onboarding: create a workspace, sign in
4. Streams
5. Compose
6. Channels (Connections)
7. Video
8. Team
9. Audit
10. Inbox
11. Calendar, Approvals, Analytics, Settings
12. Telegram
13. Offline / sample-data mode
14. Mobile
15. Capability table

---

1. Quickstart

1. Open the app and you land on Onboarding. Any protected screen redirects there when you have no session (verified: an anonymous visit to /streams is sent to /onboarding).
2. Create a workspace. Enter a workspace name, your name, email, and a password of at least 10 characters, then press Continue. This creates the workspace, your owner account and your session in one step (live).
3. Invite your team (optional). Enter comma-separated emails. Each invitee is added as Editor with status invited (live). Email delivery and invite acceptance are not wired yet, so invitees can't sign in.
4. Connect accounts. This step is simulated: the buttons only flip a "connected" badge locally. Nothing is stored. Press Finish setup.
5. Write a post in Compose and press Save draft. The draft is stored and appears under Recent drafts (live). Publishing needs a connected channel, and channels can't be connected from the UI yet (see §6).
6. Register a video in Video by dropping an MP4/WebM/MOV file. The asset and a queued processing job are created (partial: processing doesn't start, see §7).
7. Check Audit. Every action above appears in the hash-chained audit trail (live).

What you can't do yet: connect a real social account from the UI, publish to a platform from the UI, read real feeds/DMs, or use Calendar, Approvals, Analytics or Settings.

---

2. The shell

• Sidebar. Lists Streams (⌘1), Compose (⌘2), Calendar, Video, Inbox, Approvals, Analytics, Channels, Team, Audit, Onboarding and Settings, with the workspace name under the logo. The 3 next to Inbox and the 2 next to Approvals are fixture counts, not live counts. The footer card reads "Level 1 · posting — Videos & Live arrive in Level 2".
• Session bar (top right). Shows a green dot, your email and your role, plus Sign out (live). When the API is unreachable it reads "offline — sample data" instead.

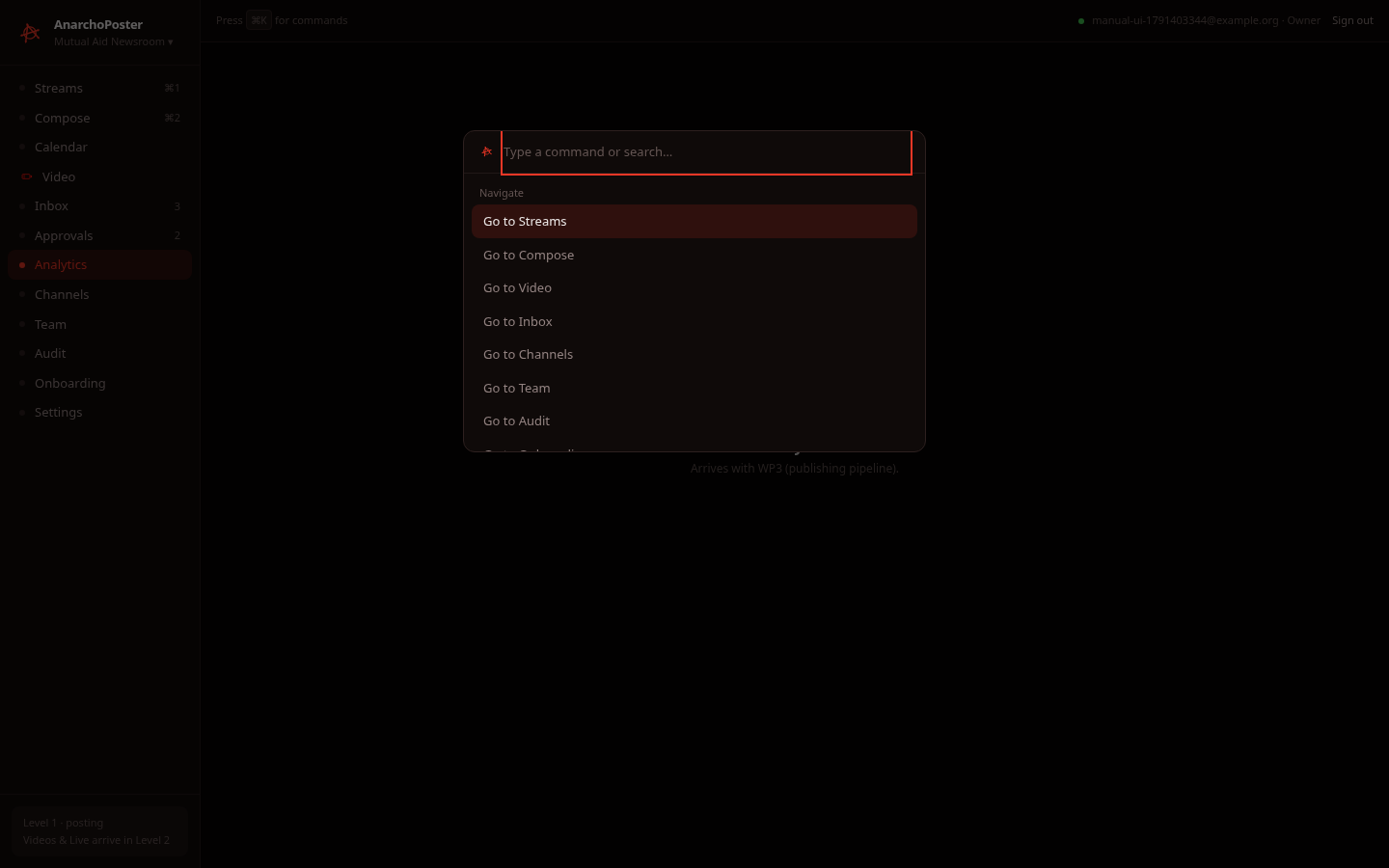

• Command palette. Press ⌘K / Ctrl+K to jump to Streams, Compose, Video, Inbox, Channels, Team, Audit or Onboarding (live: navigation only, no actions).

Session safety (live). Changing a role, inviting or removing a member bumps the workspace's authorization epoch. Every older session token is then rejected with "authorization epoch stale — re-authenticate". The web client automatically exchanges a stale token for a fresh one (/auth/reissue), so you stay signed in. We verified this: an old token returned 401 after a role change, and the client recovered transparently on the next screen load.

---

3. Onboarding

Step	Screenshot	Status

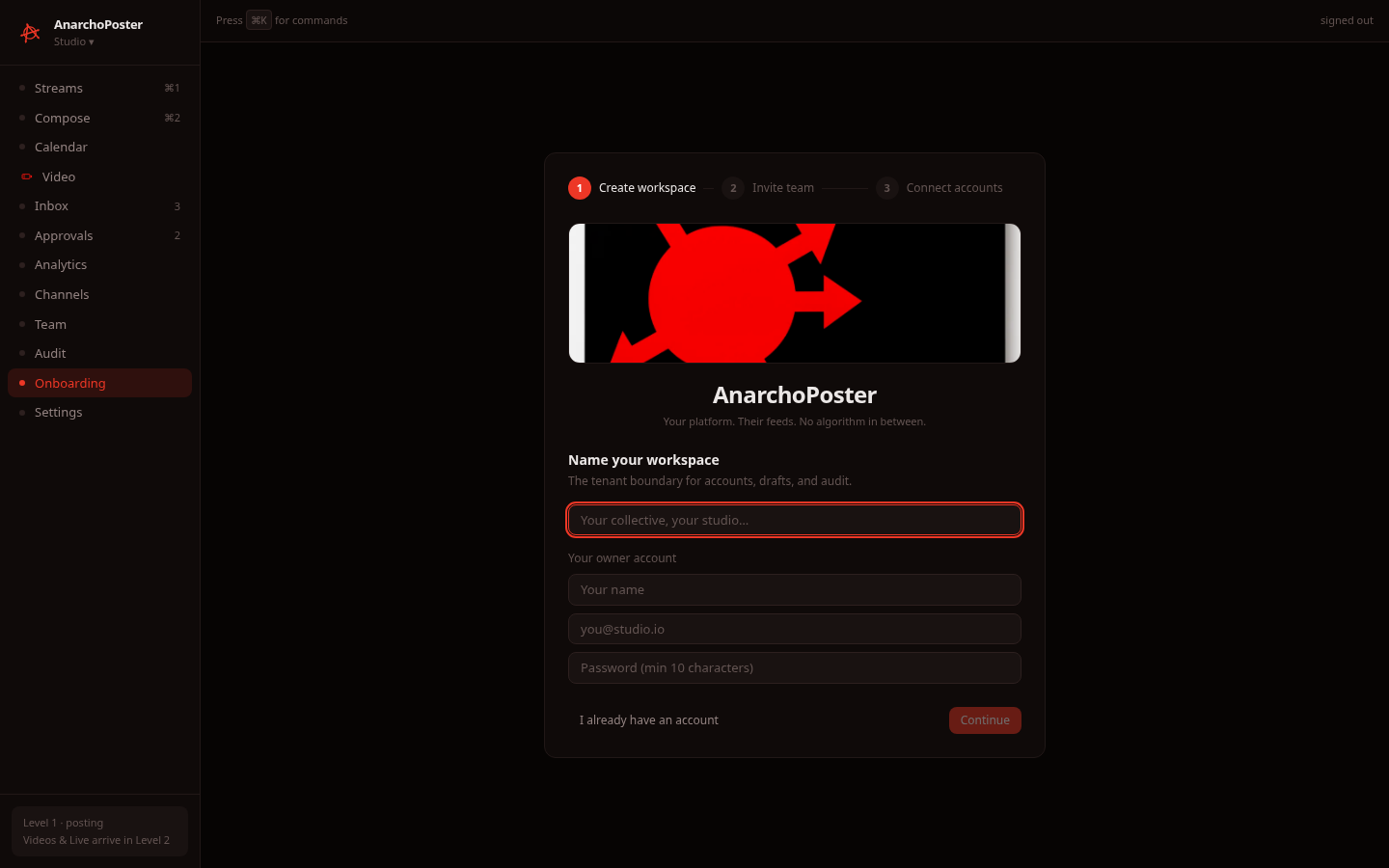

Register (blank)		live

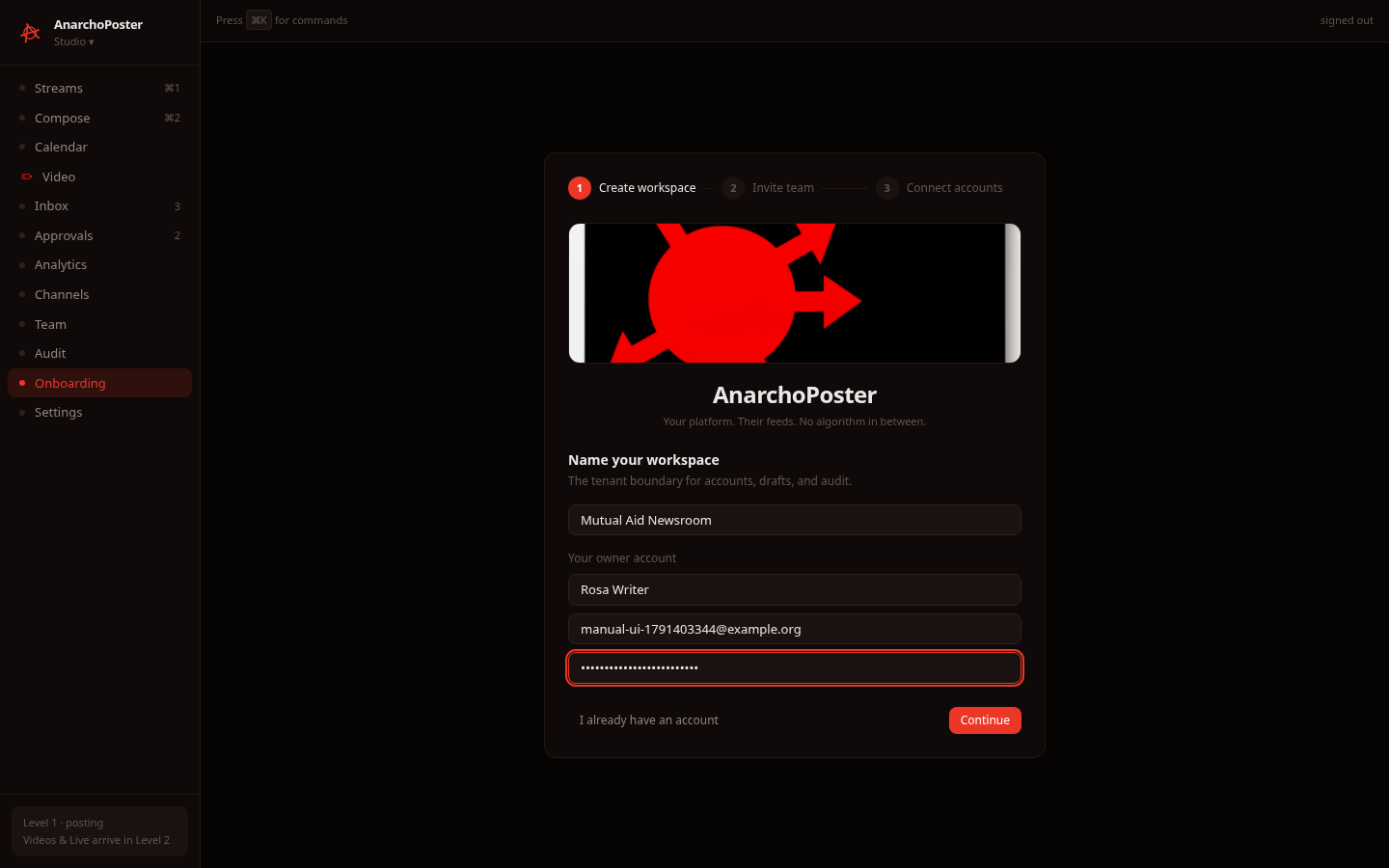

Register (filled)		live

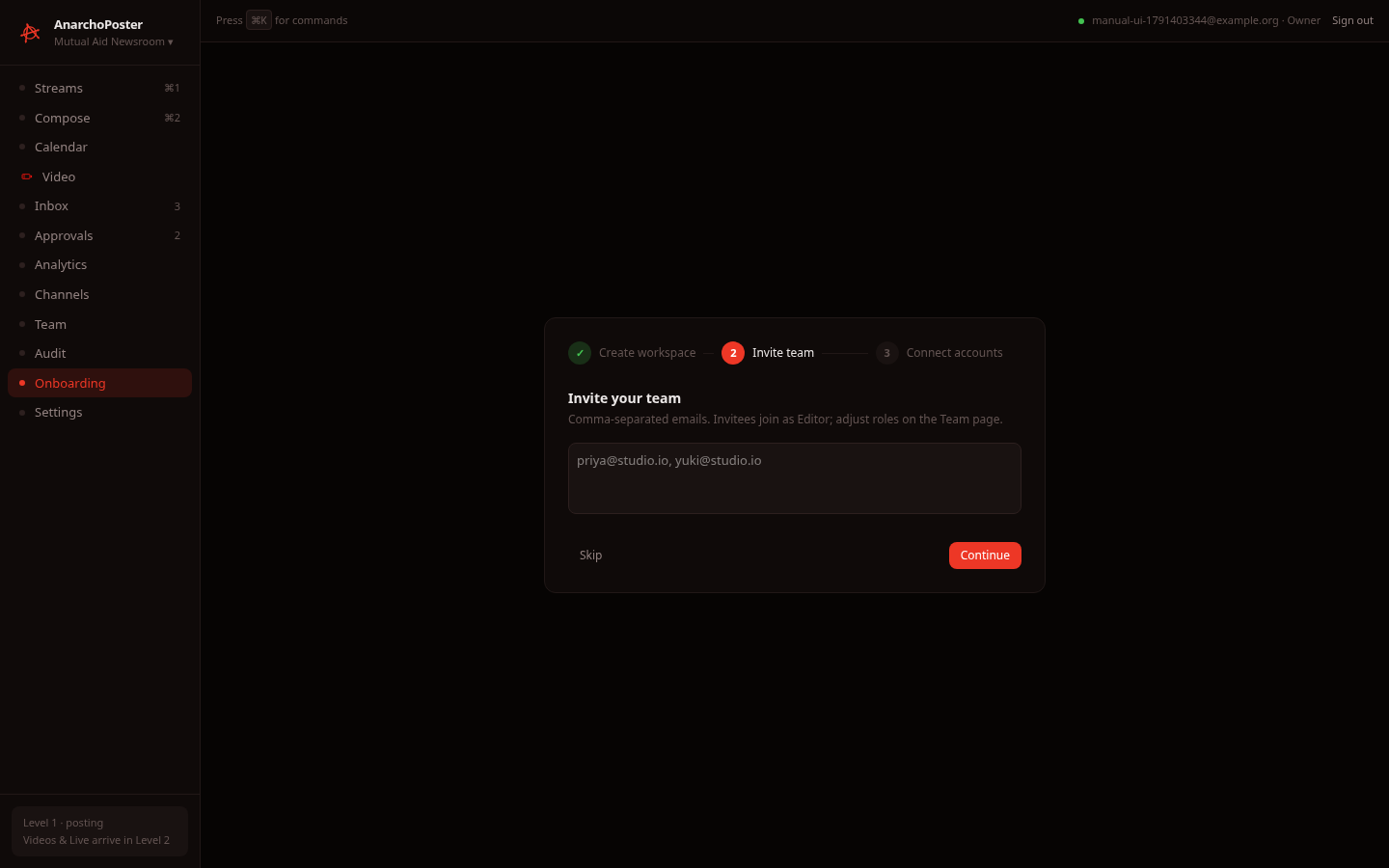

Invite team		live (creates invited members; no email is sent)
Connect accounts		stub: simulated toggle

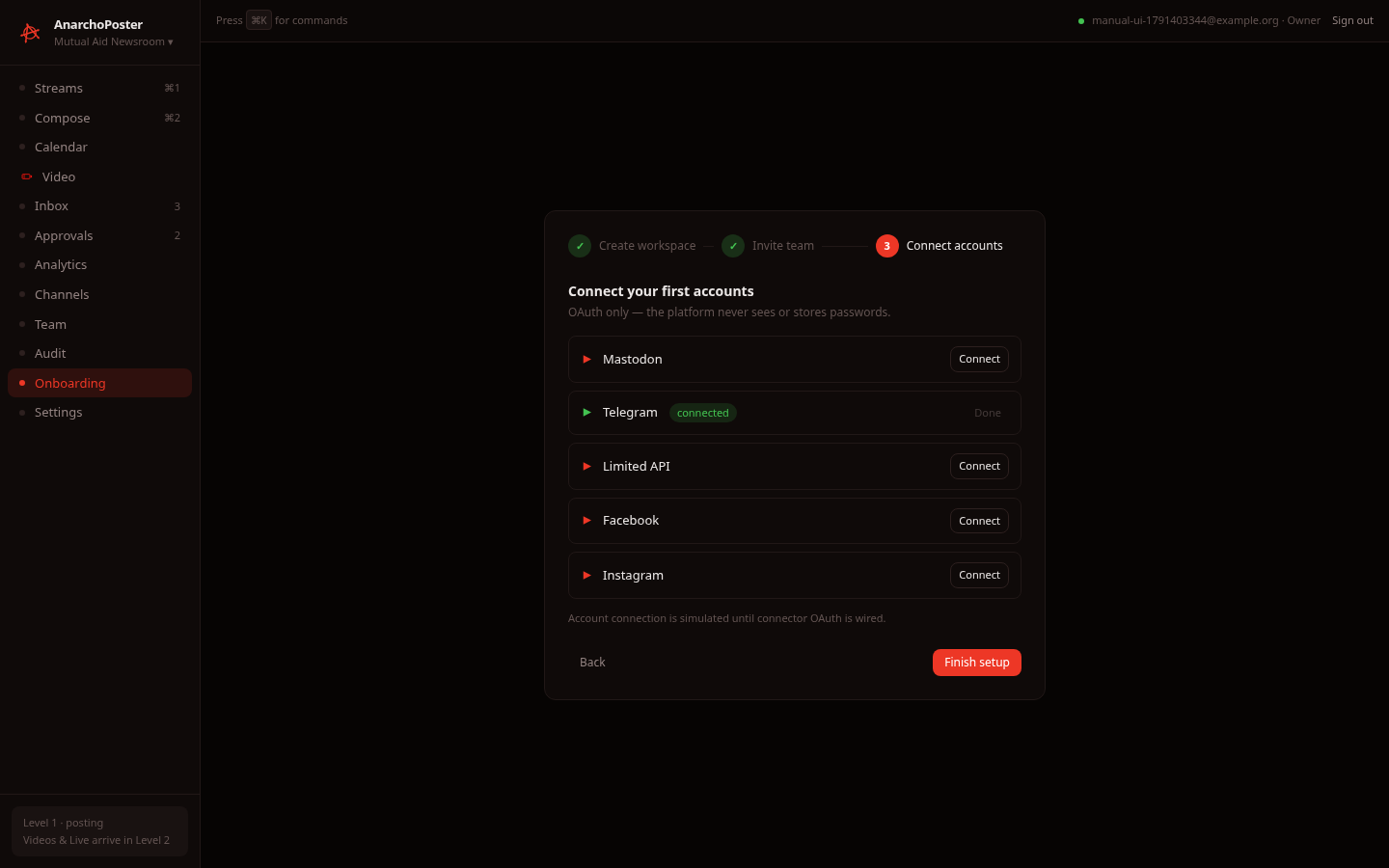

After clicking Connect on Telegram		stub: badge is local state only

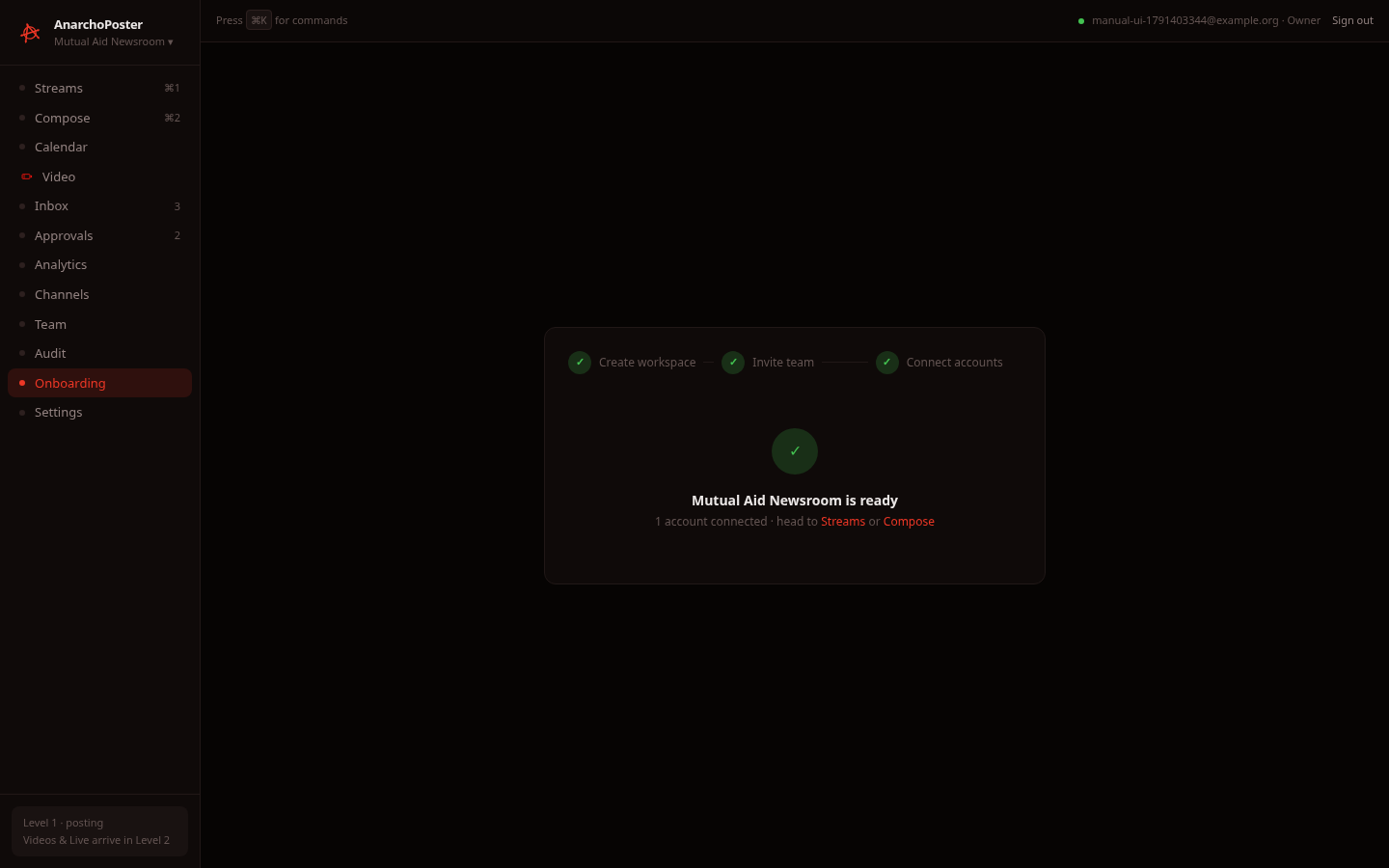

Done		live (shows the real workspace name)

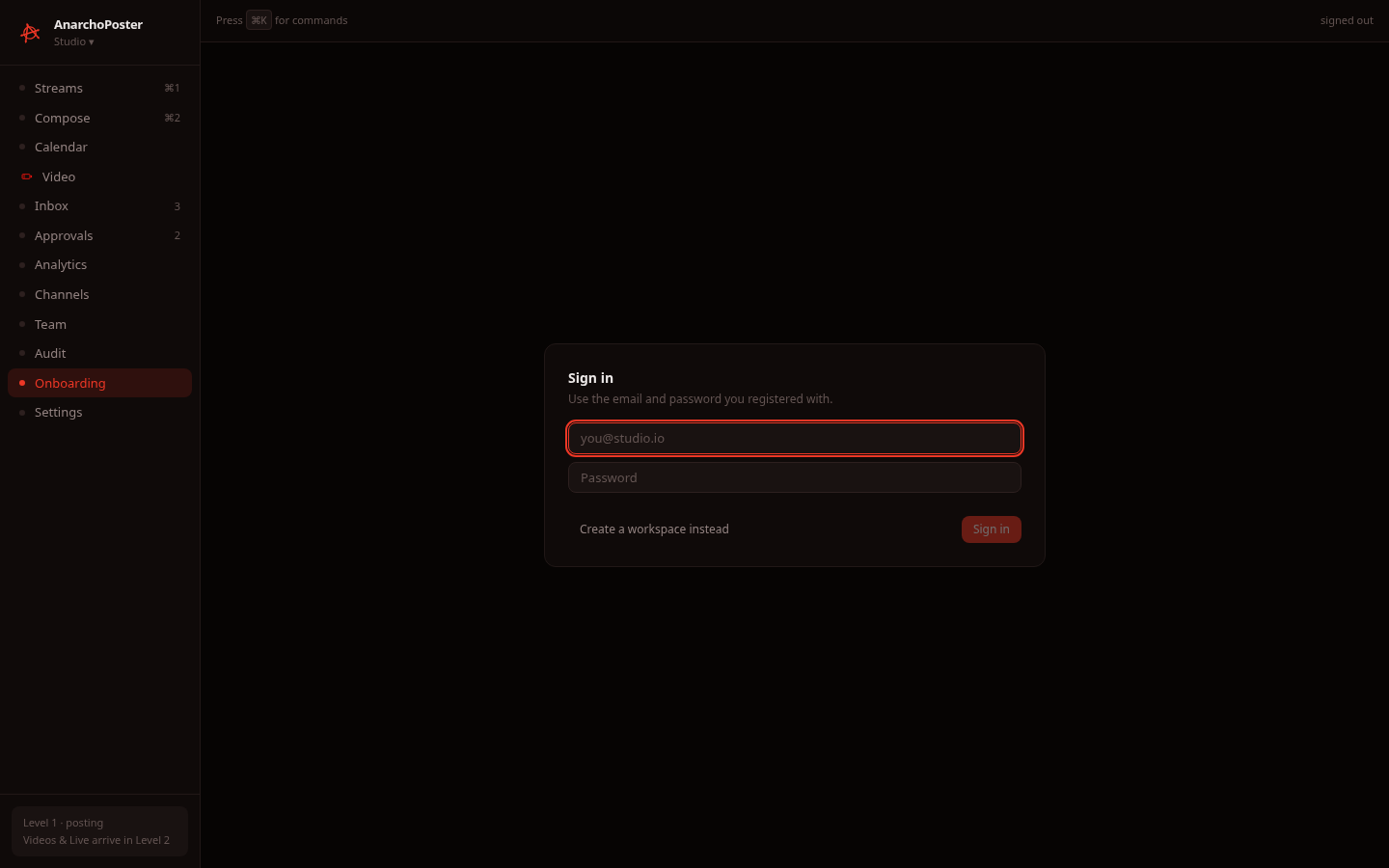

Sign in		live

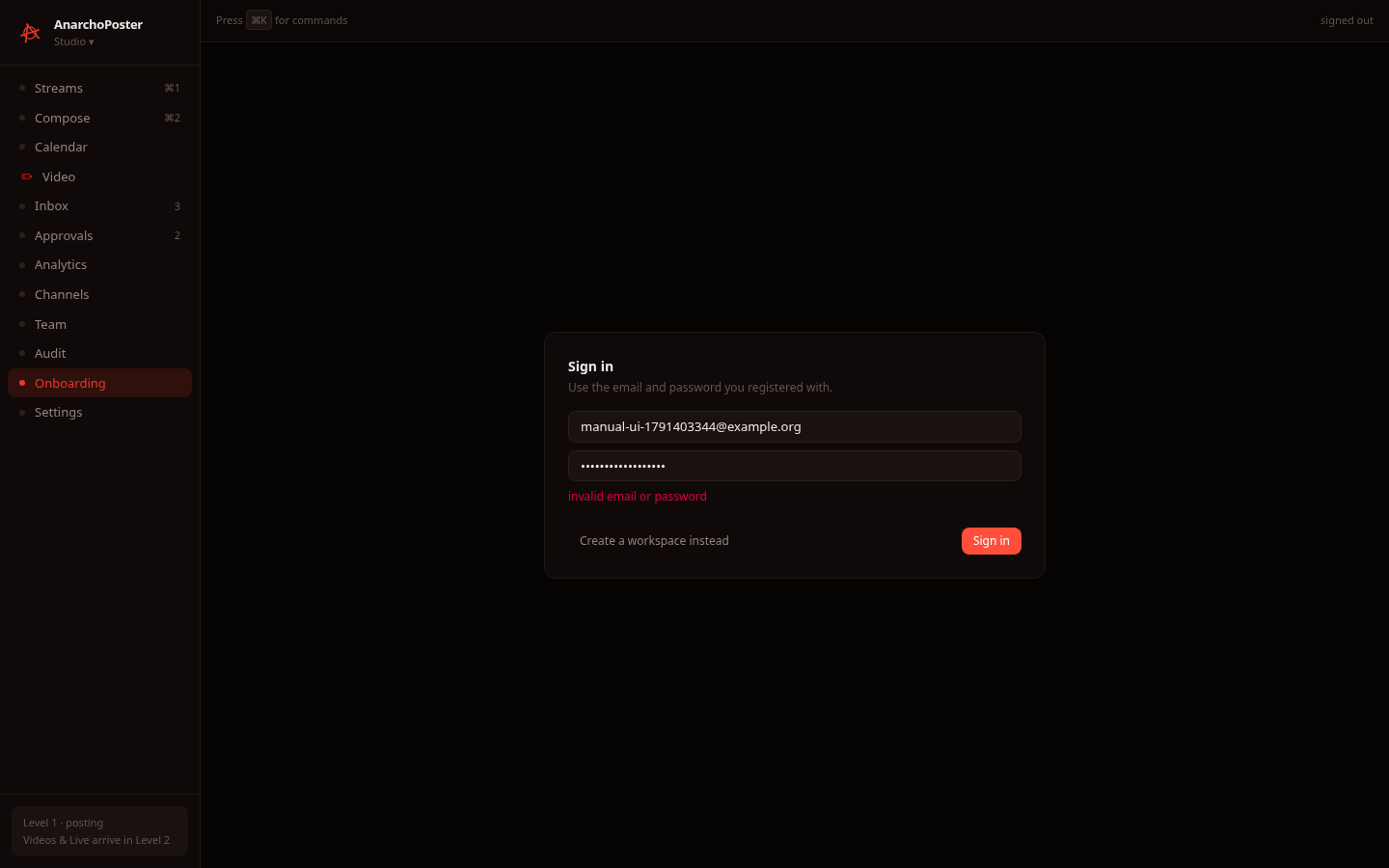

Sign in, wrong password		live: "invalid email or password"

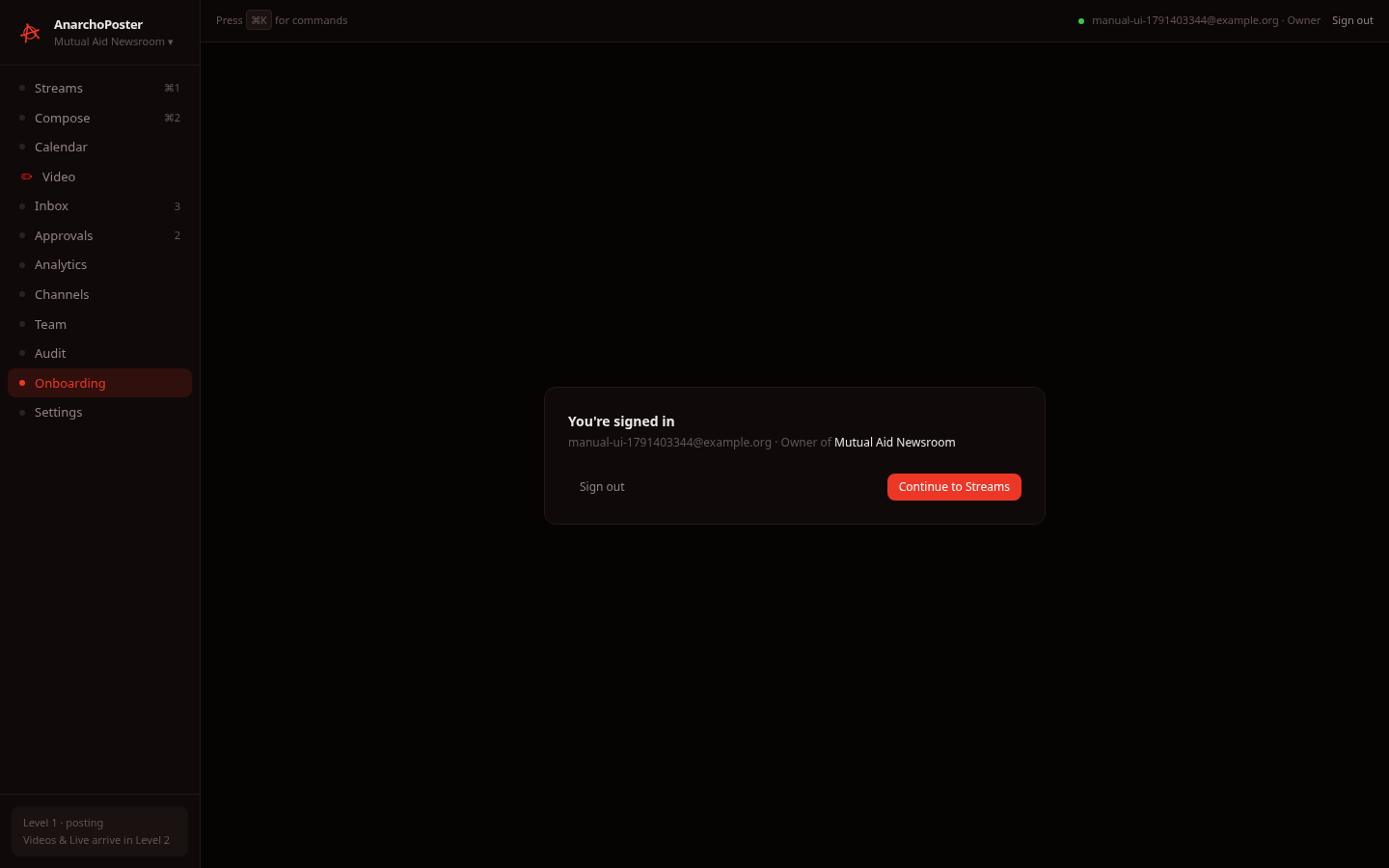

Visiting Onboarding while signed in		live: shows your email, role and workspace, with Sign out and Continue to Streams

How to use it

• Create a workspace. All four fields are required (the password needs at least 10 characters). Continue stays disabled until they are valid.
• Sign in. Click I already have an account, then enter your email and password. On success you go to Streams.
• Session expiry. If your session expires or is revoked, the app sends you back here with a notice: "Your session ended (expired, or your role changed). Sign in again."
• Platform list. The Connect step lists five fixture platforms: Mastodon, Telegram, "Limited API" (a demo placeholder), Facebook and Instagram. The connector packages cover more providers (Bluesky, Discord, Slack, PeerTube, Reddit, LinkedIn, Threads, Twitch…), but none of them are connectable from this screen.

---

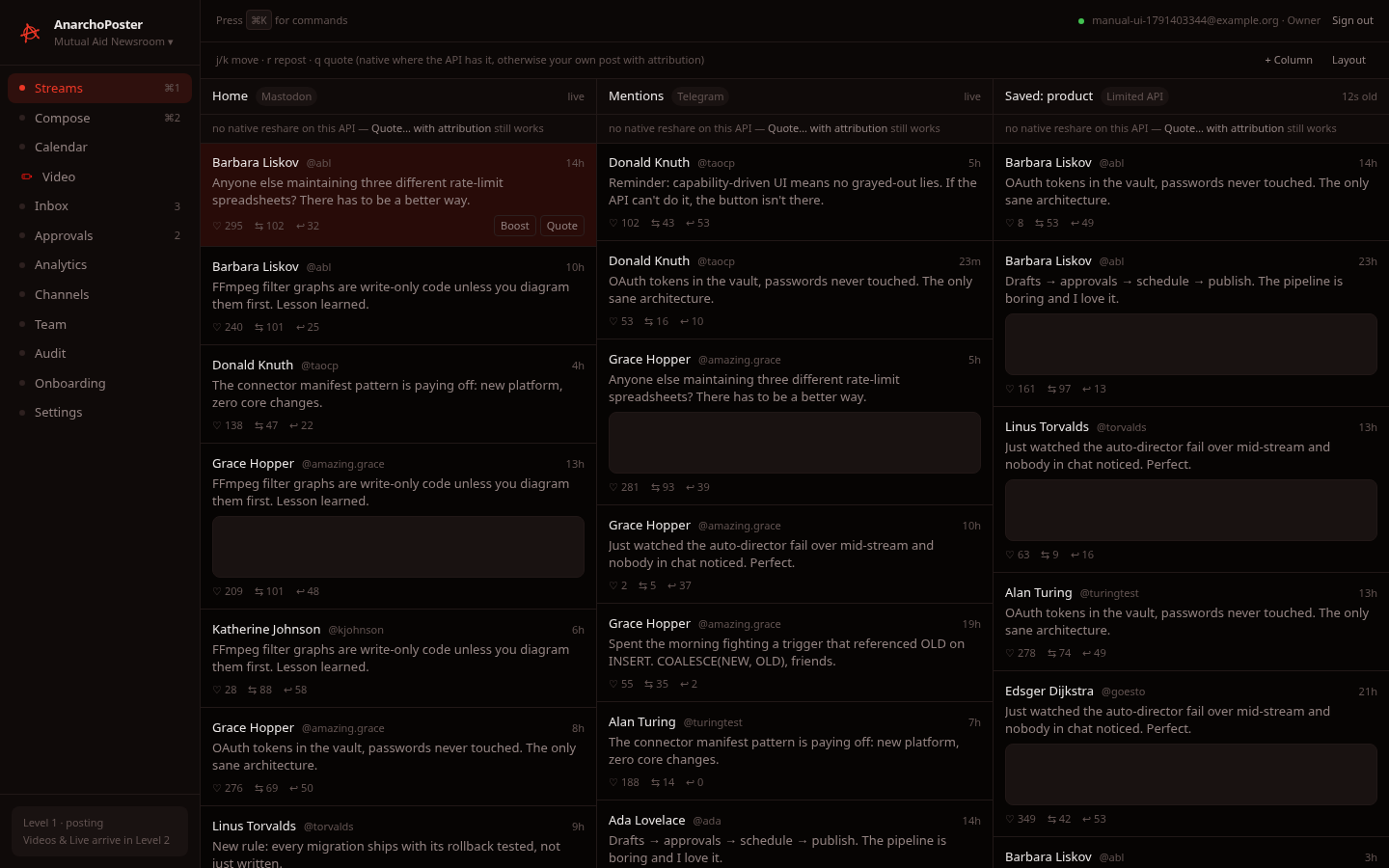

4. Streams

Status: sample data (always). Streams columns are generated fixtures, even when you are signed in. The column headers say "live", but the content is not real feed data, and the screen shows no offline badge.

What it is. A TweetDeck-style multi-column console. The columns are Home (Mastodon), Mentions (Telegram) and Saved: product (Limited API). Each column states its amplification honesty line, for example "no native reshare on this API — Quote… with attribution still works".

Keyboard (works on the fixtures):

Key	Action
j / ↓	select next card (highlighted, shows Boost / Quote buttons)
k / ↑	select previous card
r	repost/boost the selected card (shows a toast; nothing is sent)

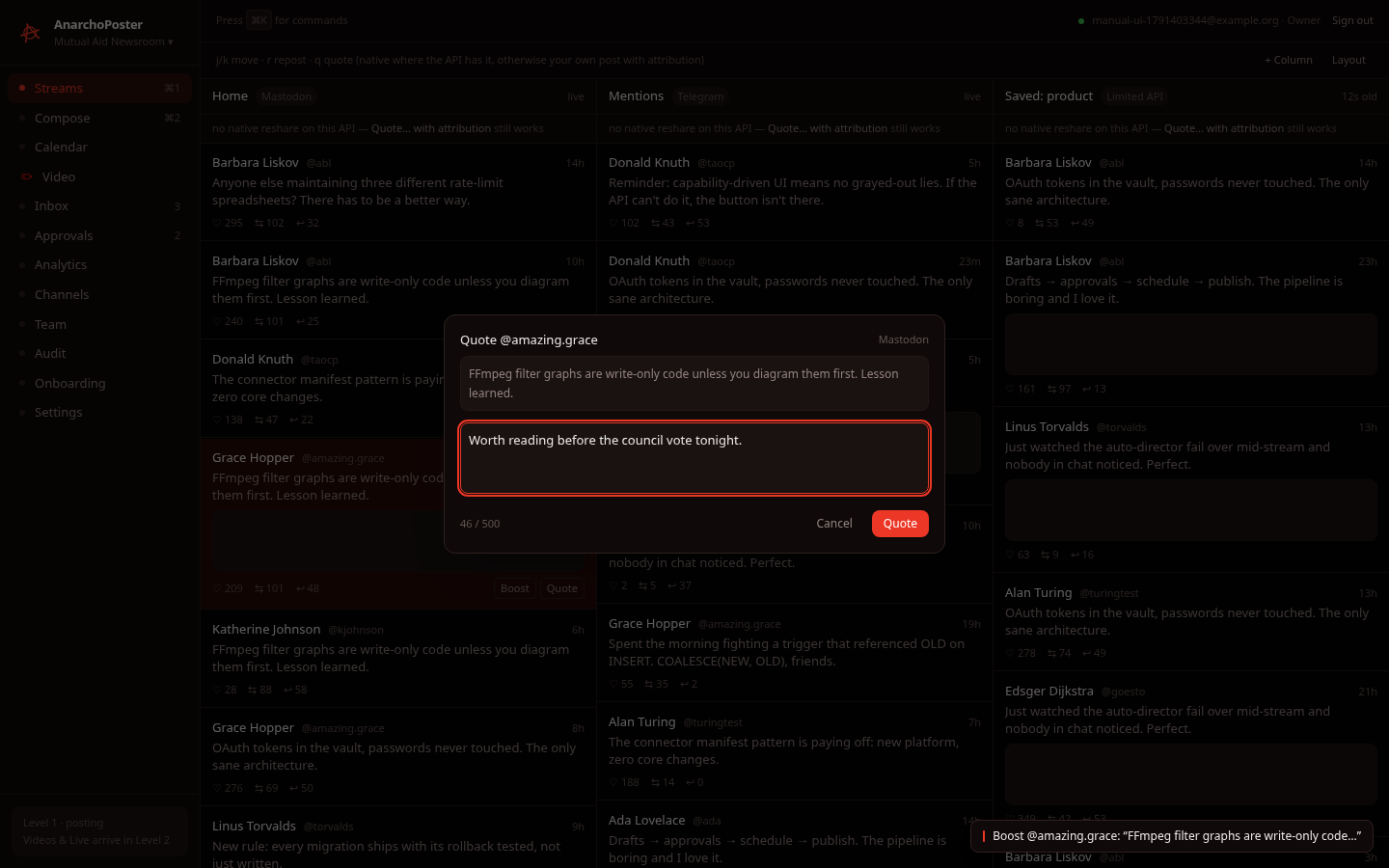

q	open the quote modal
Esc	close the modal

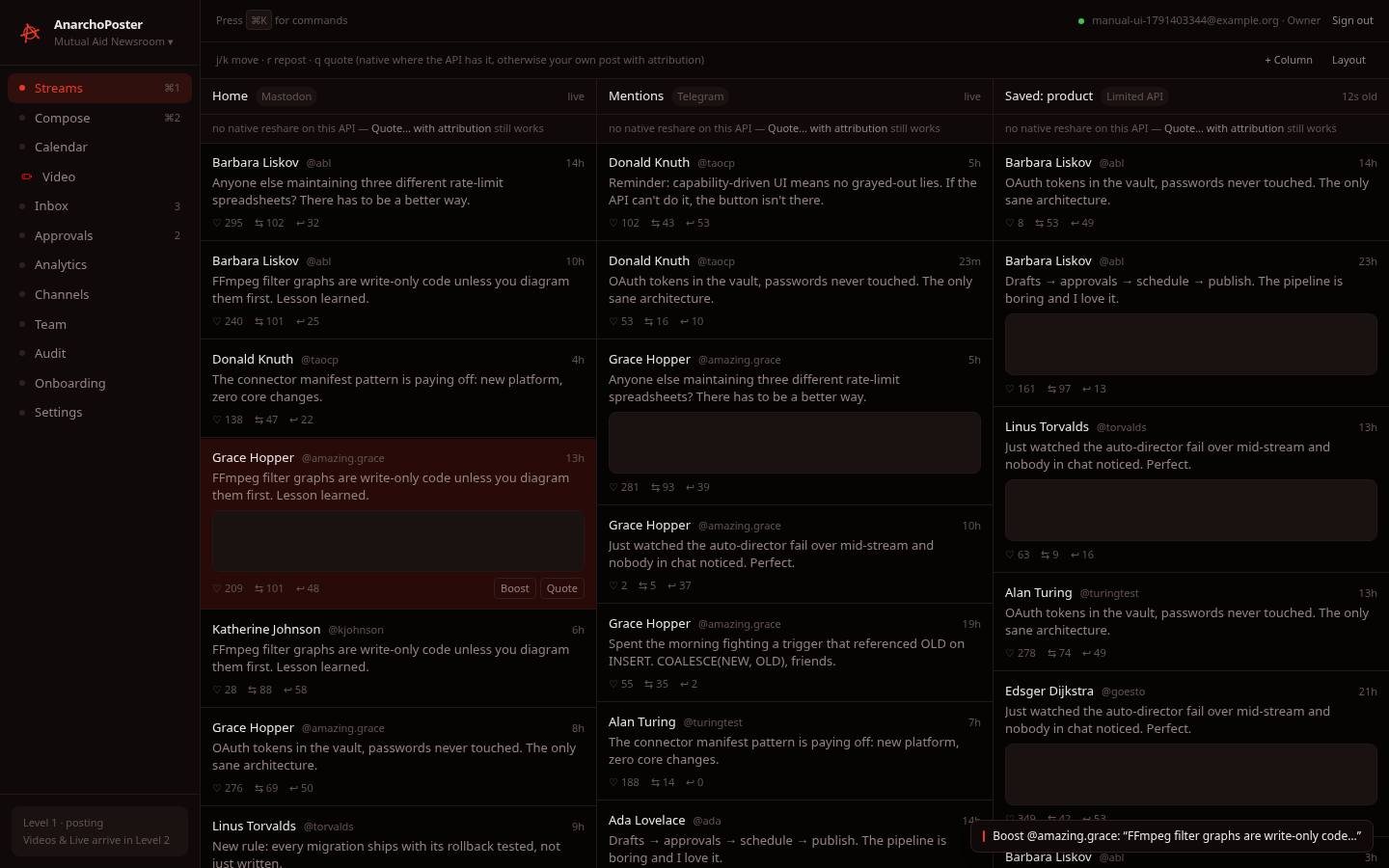

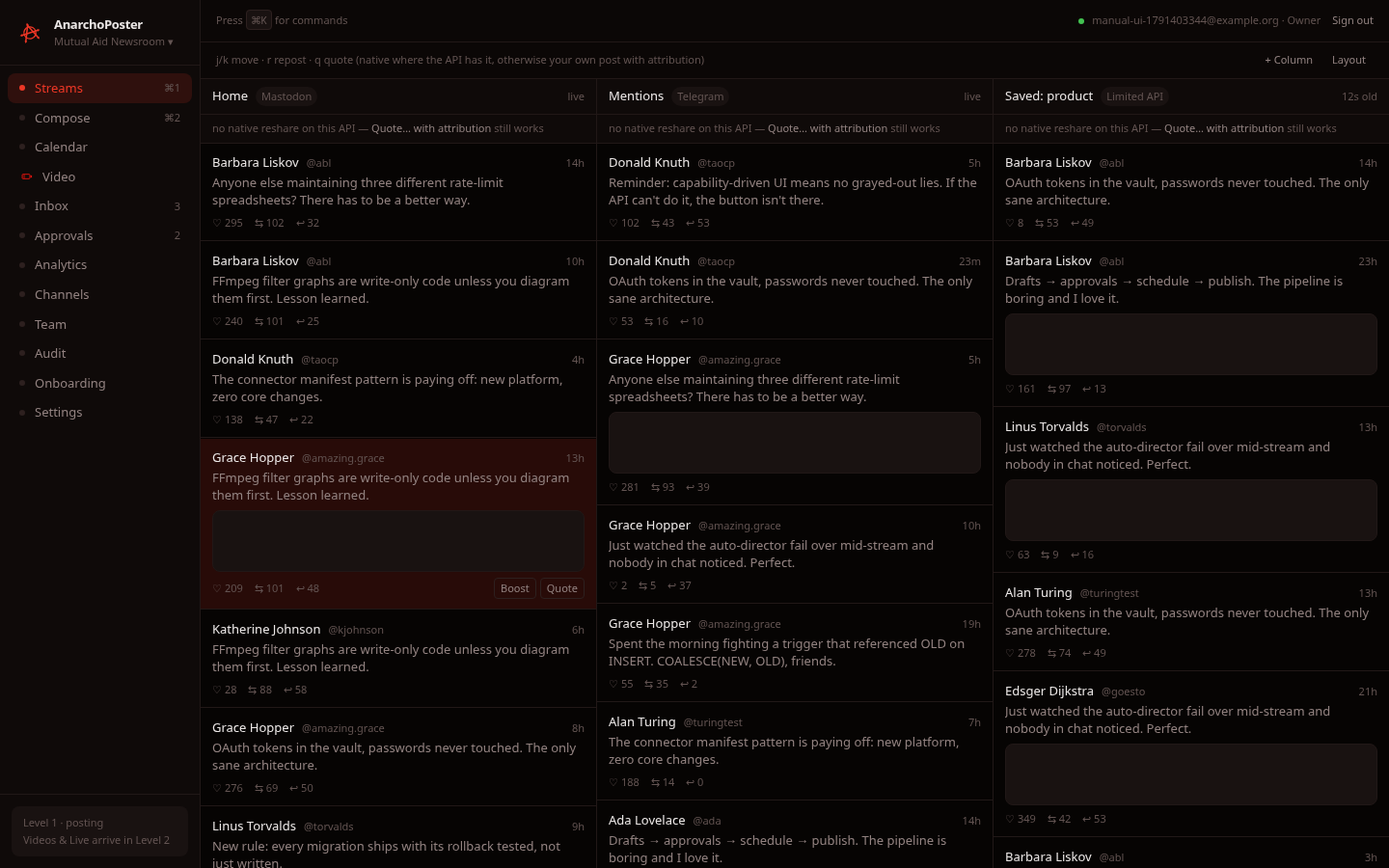

Selected card	Repost toast	Quote modal

+ Column and Layout are inert (stub).

---

5. Compose

Status: live (drafts) · partial (publish).

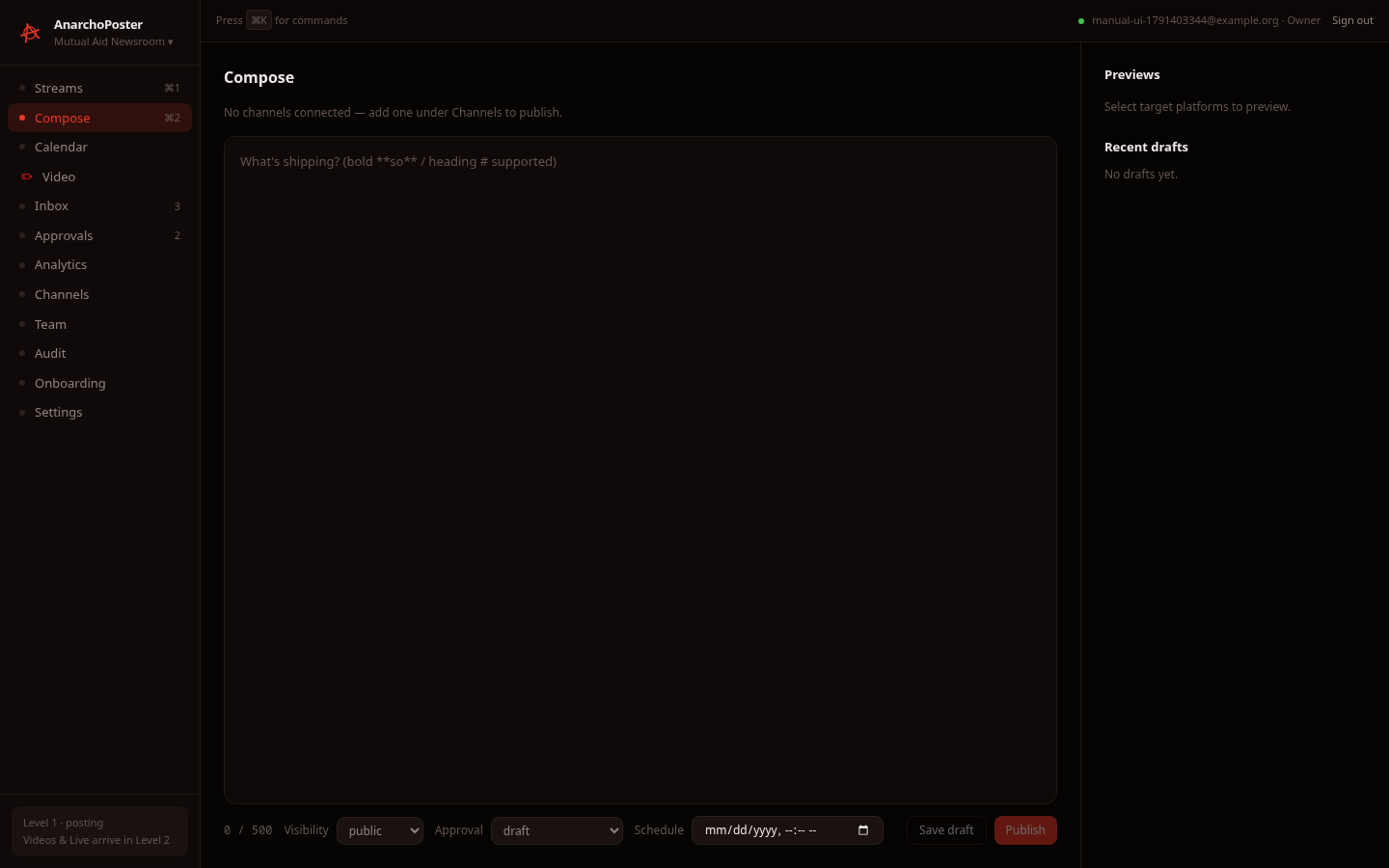

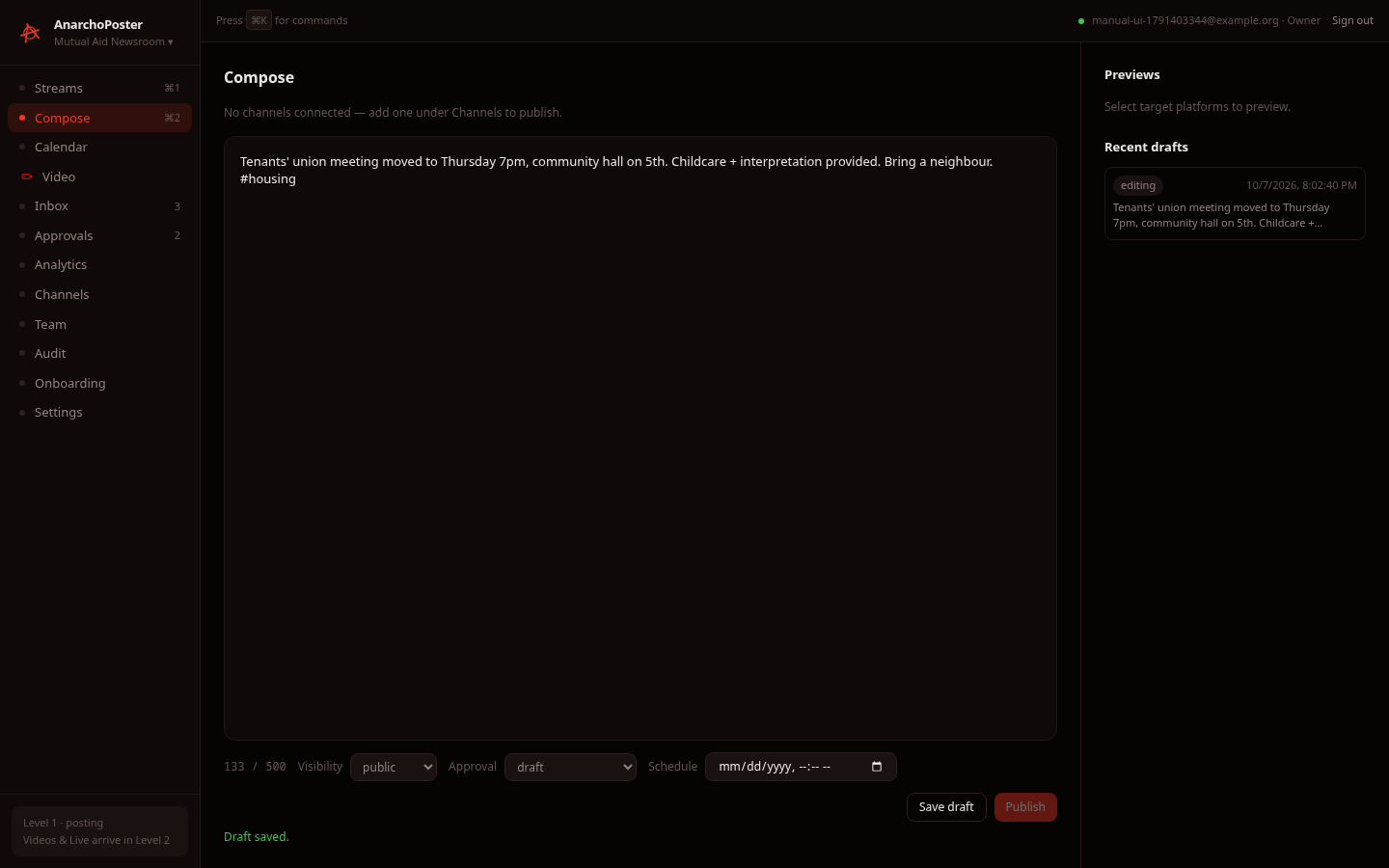

Empty	Typed	Draft saved

What it does

• Editor. A rich-text (Tiptap) editor with a live character counter (133 / 500). The limit is the tightest one among the selected targets, or 500 when no target is selected.
• Targets. When signed in, the target chips are your workspace's real connections (GET /connections). In a fresh workspace there are none, so the screen shows "No channels connected — add one under Channels to publish" and Publish stays disabled.
• Visibility. public / followers / private.
• Approval. draft / submit for review / approved.
• Schedule. A date-time picker. Setting it turns Publish into Schedule.
• Save draft (live). Stores the post and shows "Draft saved.". The draft appears under Recent drafts with its state badge (editing), and clicking a recent draft loads its text back into the editor. All verified in the UI; saving was also verified via the API.
• Publish (partial). For each selected target, Publish runs create → submit → approve → schedule, stopping early if you lack a permission or choose submit for review.
  • Verified via the API: create (editing) → submit (in_review) → approve (approved). Scheduling against a connection that doesn't exist is correctly refused (404 connection … not found).
  • Not verified: publishing to a real platform. No workspace can obtain a real connection through the UI, and the dev seeding route POST /demo/connections currently returns 500. We couldn't create a target, so the publish button was never enabled during testing.
• Previews pane. Shows one preview per selected target with its own counter. It is empty when there are no targets.

---

6. Channels (Connections)

Status: live list (read-only) · stub for Connect/Reconnect/Remove · capacity chips need sample data or a real connection.

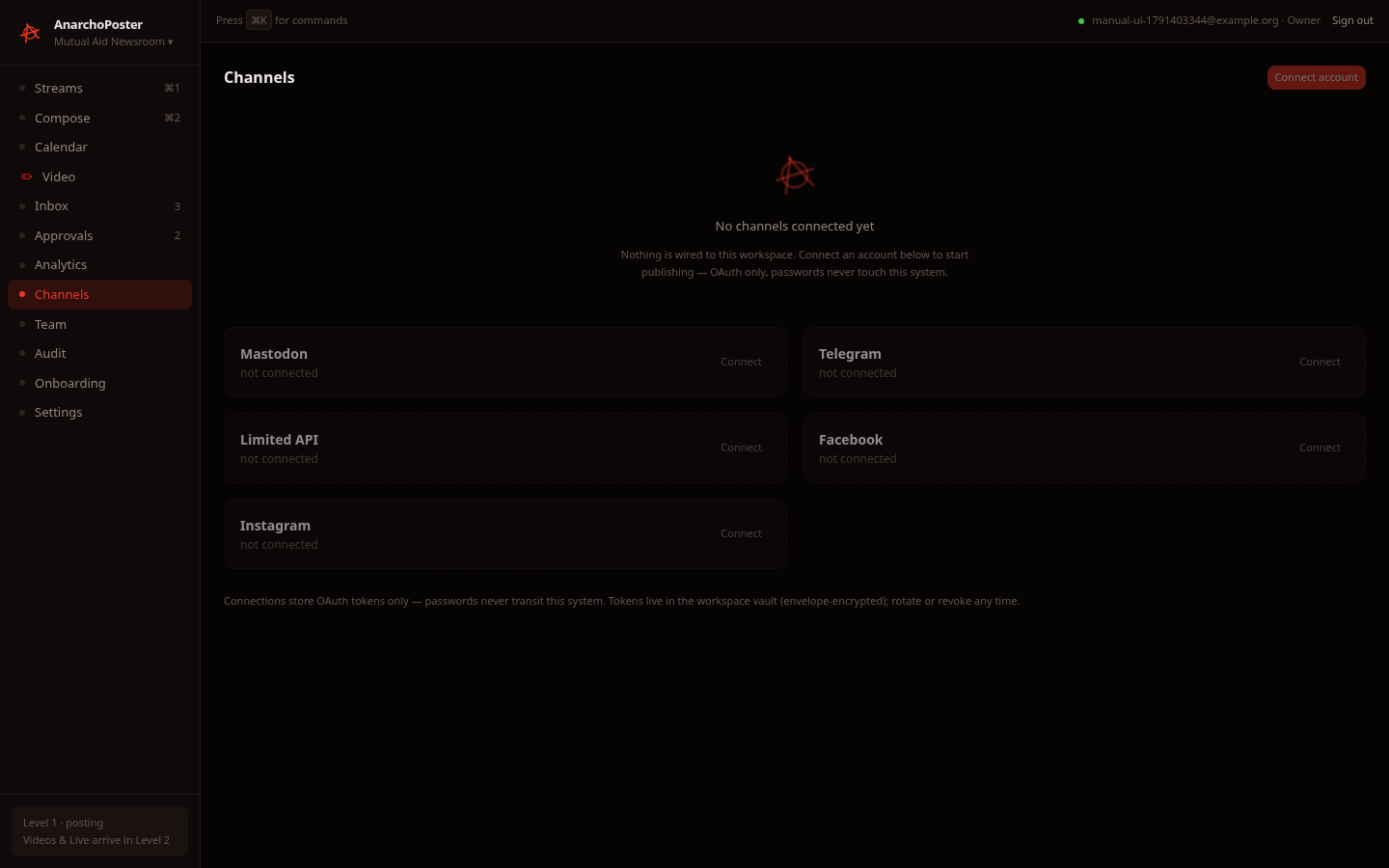

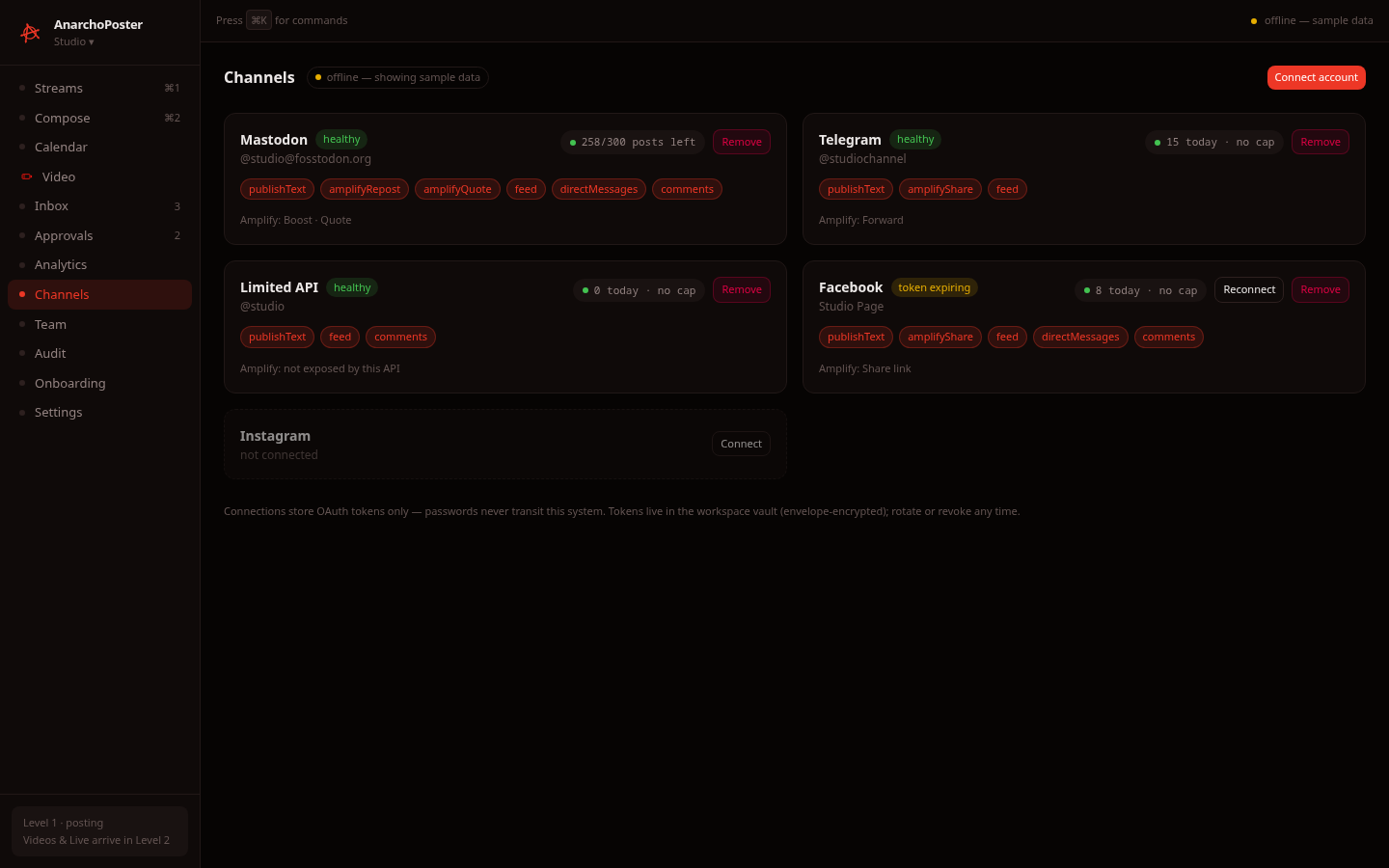

Live workspace (no channels yet)	Sample data (API unreachable)

What it does

• Live. Reads GET /connections for the workspace. A new workspace shows "No channels connected yet", followed by one dashed not connected card per known platform.
• Connect buttons. Connect account, Connect, Reconnect and Remove are disabled when live. Their tooltip reads: "OAuth connect flows arrive with the connector wiring phase". There is no way to add a channel from the UI today.
• Publish governance (per connection): admins choose who signs off each publish — manual, automatic on approval, or an admin vote (1 / majority / consensus). Managed via the API (PATCH /connections/:id/publish-governance, admin guide §6.1); there is no web control for it yet. A governed connection holds publishes and boosts with "awaiting publish approval" until the admins' poll passes.
• Each connected card (seen in sample mode) shows:
  • a health badge (healthy, token expiring, needs credentials)
  • capability chips (publishText, amplifyRepost, feed, directMessages, comments…)
  • an Amplify line naming the platform's real reshare verbs (Mastodon: Boost · Quote; Telegram: Forward; Facebook: Share link; "not exposed by this API" where there is none)

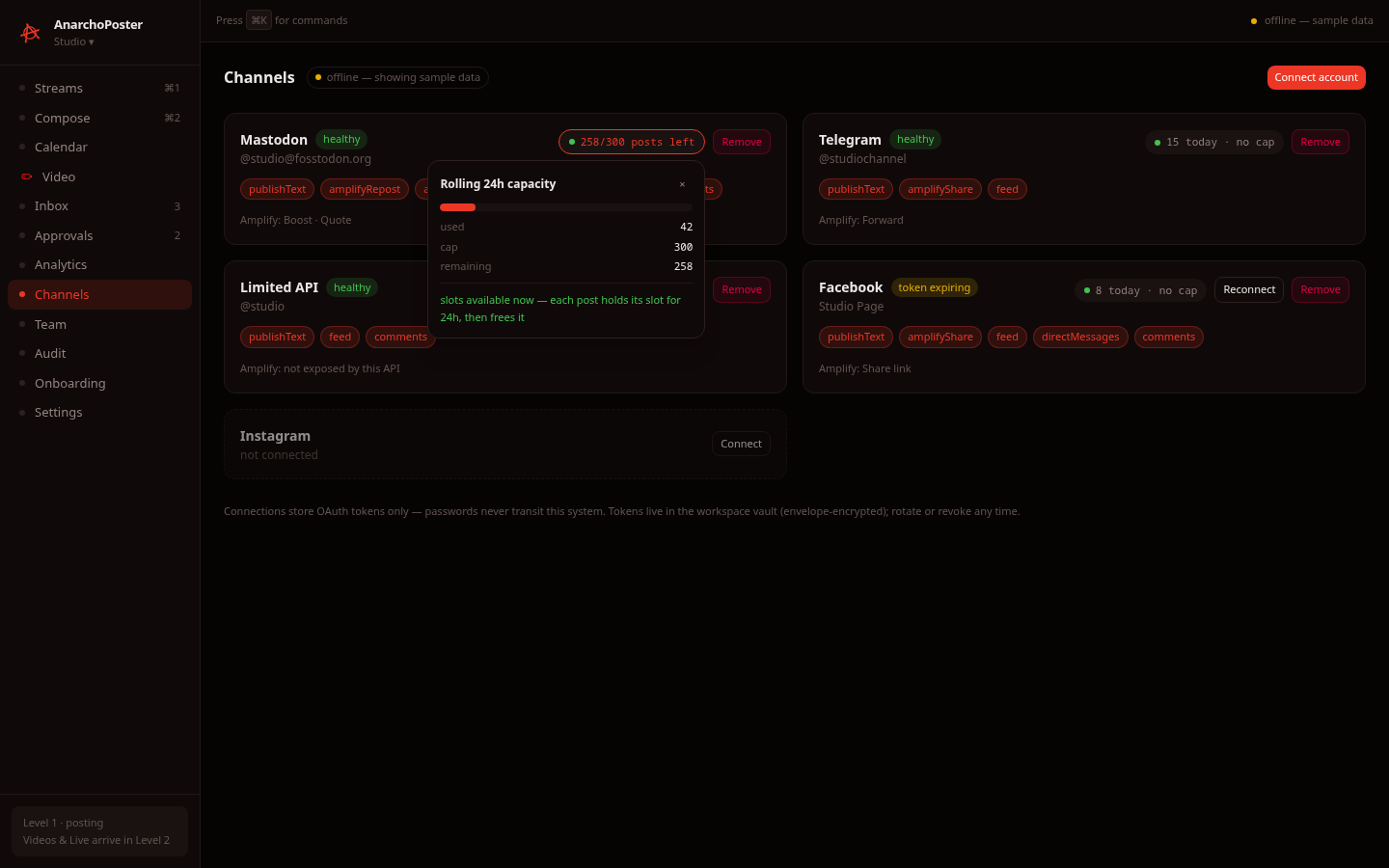

Capacity chips and popover

The chip on each connection reads either 258/300 posts left or 15 today · no cap. Click it to open the Rolling 24h capacity popover, which shows:

• a usage bar with used / cap / remaining
• either "slots available now — each post holds its slot for 24h, then frees it" or "next slot frees in …"
• a tier note, and a warning when a configured cap exceeds the platform's documented standard

The math is real: it uses the connector SDK's capacitySnapshot rate policy. In a live workspace the chip uses the connection's real recentPublishes. We could only exercise the popover on sample data, because no live connection could be created (see §6 above).

---

7. Video

Status: live (register, list, detail, delete) · partial (processing).

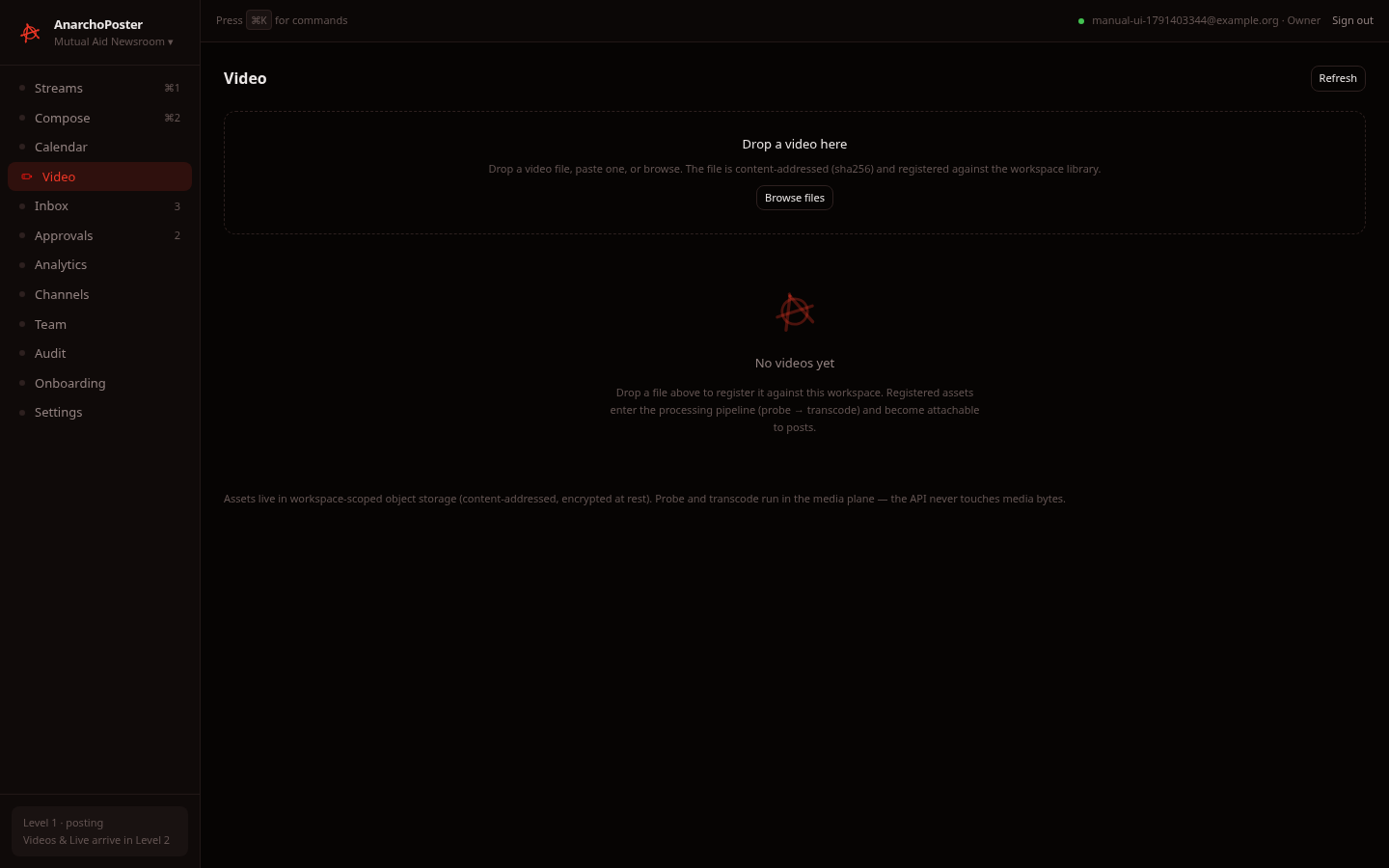

Empty library	After upload: detail drawer

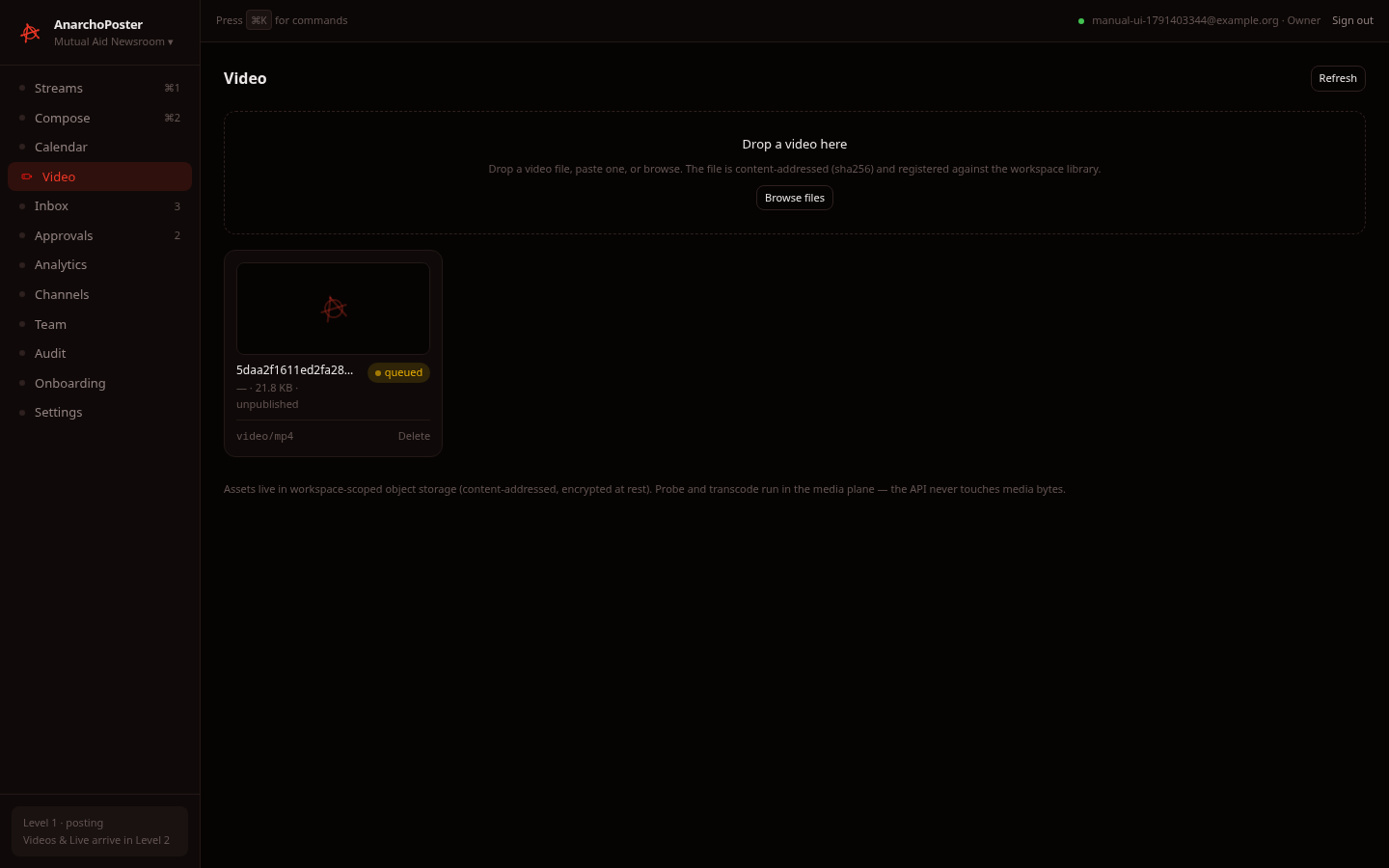

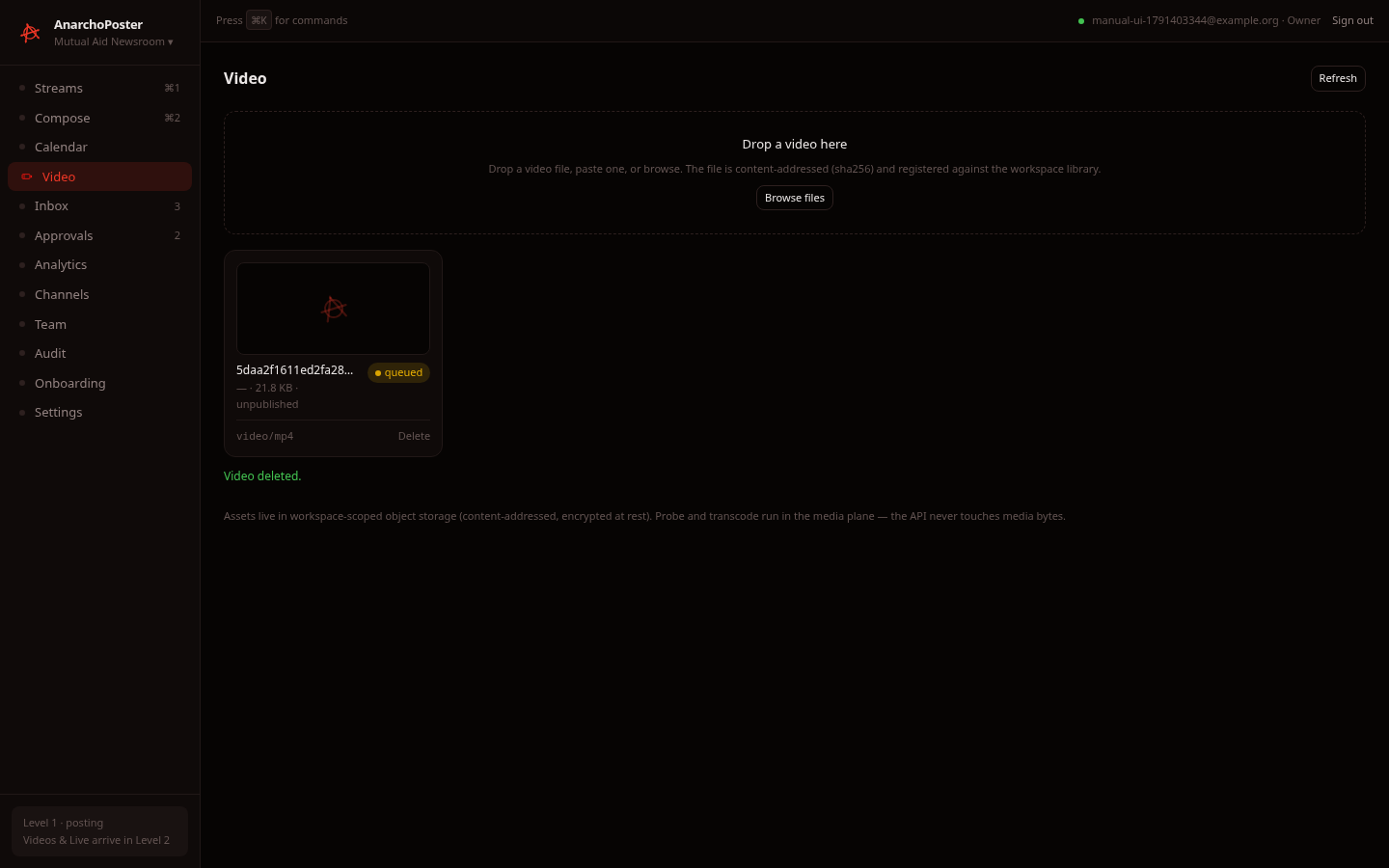

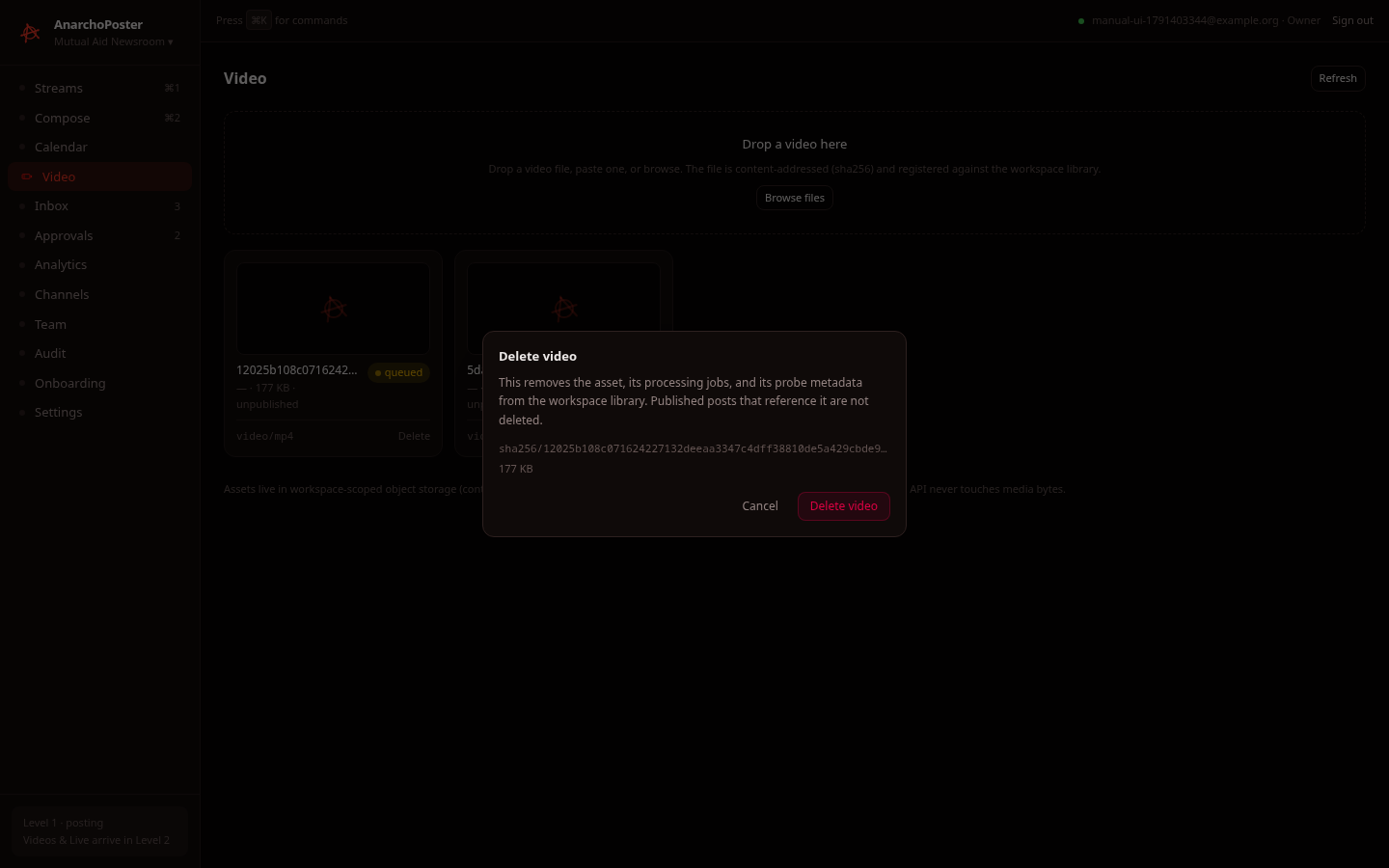

Library grid	Delete confirmation	After delete

How to use it

1. Add a video. Drop a file on Drop a video here, paste one, or click Browse files. MP4, WebM and MOV are accepted. Other types are refused (verified: a .txt file gave "not-a-video.txt: not a video file (text/plain)"). Drag-drop and paste use the same code path as Browse; we exercised only Browse.
2. What happens on upload. The browser computes the file's SHA-256 and registers it with the API as sha256/<hash>.<ext> (POST /video/upload). The response creates a video asset and a processing job in state queued (live, verified twice in the UI and once via the API).
3. Detail drawer. The drawer opens automatically after upload; close it with Esc. It shows:
   • the pipeline: Queued → Probing (ffprobe) → Transcoding → Ready
   • probe metadata (MIME type and size are filled in; duration, resolution, codecs and bitrate stay "–" until the probe runs)
   • publications
   • the asset ID
4. Auto-refresh. The library refreshes every 6 seconds while any asset is in flight, and Refresh reloads it manually.
5. Delete. Click Delete on a card to open the confirmation dialog: "This removes the asset, its processing jobs, and its probe metadata… Published posts that reference it are not deleted." Click Delete video to remove it and show "Video deleted." (live). The deletion appears in Audit as video.deleted.

Why it's partial. The API registers the asset but never receives the file bytes: there is no multipart upload route. The bytes are meant to reach object storage through the media-worker ingest path, which isn't wired. As a result:

• every job stays queued at 0% (verified 8 minutes after upload, and across auto-refresh cycles, as shown in desktop-video-after-refresh.png)
• no probe metadata is ever filled in
• no thumbnail is generated (cards show the logo placeholder)
• cards show the hash, not the original filename

---

7.1 Live Control Room — multiview switching on a large screen

Where. Control Room in the sidebar (/control-room). Built for a big browser window: on wide viewports you get the full switcher layout — multiview grid and switcher bar on one side, PST preview, audio monitor and overlay editor on the other. On a phone it collapses to a single focused tile.

Prerequisites. A virtual channel assigned to a media worker, with ingest sources and production scenes configured, and the preview bus selected. Without that the page says exactly that and shows no panels. Every panel needs media.view/director.view; switching needs director.take; locking needs director.lock_program; overriding auto-director needs director.override_auto; changing overlays needs director.change_layout.

The multiview grid. Pick a layout — 2x1, 2x2, 3x3, 4x4, or custom (1–4 columns). Tile 1 is always PGM (the encoder's actual output). Every other tile is an ingest source. Behavior per tile:

• Tap to focus. A focused tile is promoted into the limited live slots (up to 4 on desktop, 1 on mobile).
• Upgrade live / Remove live (3x3/4x4/custom tiers): promote a tile from thumbnail refresh to a live HLS video.
• Tally borders. Red border = on program, green = on preview. Tally comes from the worker's realized version — until the worker confirms it applied your desired state, the header says "Tally unknown · awaiting matching observed version" and borders stay neutral.
• Bandwidth care. Selected tiles poll previews every 1 s, the rest every 2 s; polling pauses when the tab is hidden or a tile scrolls off-screen. Live video uses native HLS; without it you get continuously refreshed thumbnails.
• The desired/observed version strip at the top (Desired v12 · Observed v11) shows whether the worker has caught up.

Switching. The switcher bar works in broadcast semantics:

1. PST scene — pick the scene to prepare (layouts: single, PiP, 2x1, 2x2, 3x3, 4x4, custom).
2. TAKE — PST→PGM at the next ready frame boundary (clean cut).
3. CUT — request an immediate switch.
4. Both wait for worker confirmation; nothing claims success from the click alone.
5. Lock program — freezes switching (the bar shows LOCKED).
6. Operator override — pull the channel out of automation: Until released, Five minutes (auto-expires), Until source offline, Until next event, or back to auto. The status word reads AUTO, MANUAL, or LOCKED.

Every switch is an idempotent, audited command (Idempotency-Key safe to retry); the API refuses when the preview bus is empty or the worker is not assigned.

Audio. Scenes carry per-slot audio: off, on, or primary (at most one primary slot per scene) with a per-slot gain in dB, plus a program master gain. The Audio Monitor panel meters the monitored taps; muted-and-polled like the video tiles.

Overlays. The Overlay Editor manages per-scene graphics: lower third, chyron (scrolling strip — speed and strip width are set per overlay), logo, and server clock (HH:MM / HH:MM:SS). Overlays stack in layers 0–7 at a set position; rendered overlays go through a render revision (the worker rasterizes them to PNG) and only rendered revisions can go live. Editing requires director.change_layout.

Offline / fixture mode. With the API unreachable the page still renders with fixture data, clearly marked — buttons record the request but "Tally awaits a simulated observed frame."

---

8. Team

Status: live (members, invite, role change, remove) · sample data (asset library, always).

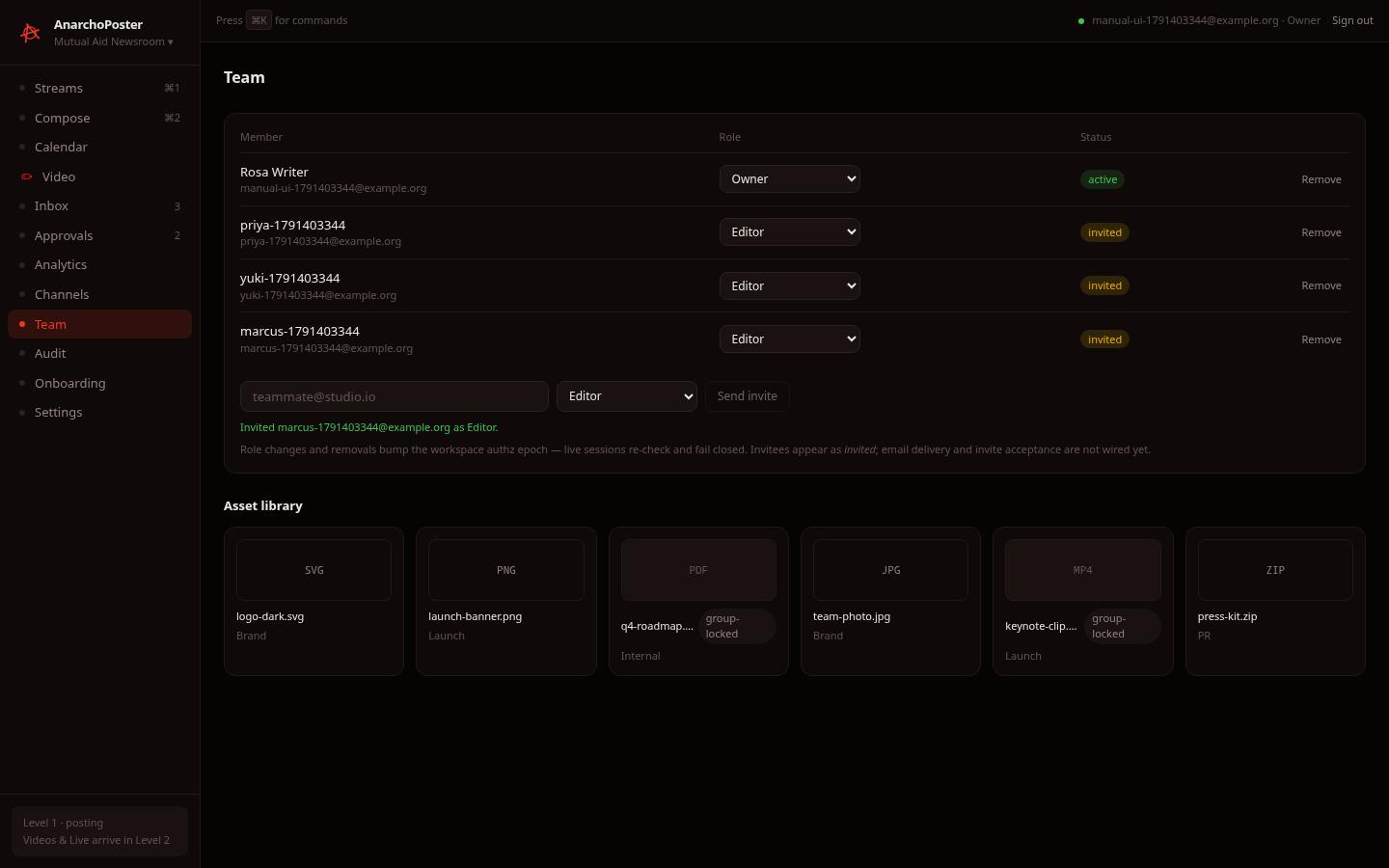

Members table (live):

Feature	What happened in testing
List	Shows member, role and status (active / invited)
Invite	Entering an email + role and clicking Send invite gives "Invited … as Editor." and adds an invited row. Verified in the UI and via the API
Change role	Uses the per-row dropdown. Verified via the API (Editor → Approver); the old session token was then rejected and the reissued token worked
Remove	Remove → Confirm remove. Verified via the API (the UI button itself was not clicked)
Roles	Admin, Analyst, Approver, BroadcastOperator, Editor, Moderator, Owner, Publisher, StreamOperator, VideoPublisher. Only an Owner can assign or modify Owner

Invite emails and invite acceptance are not wired. The page says so itself.

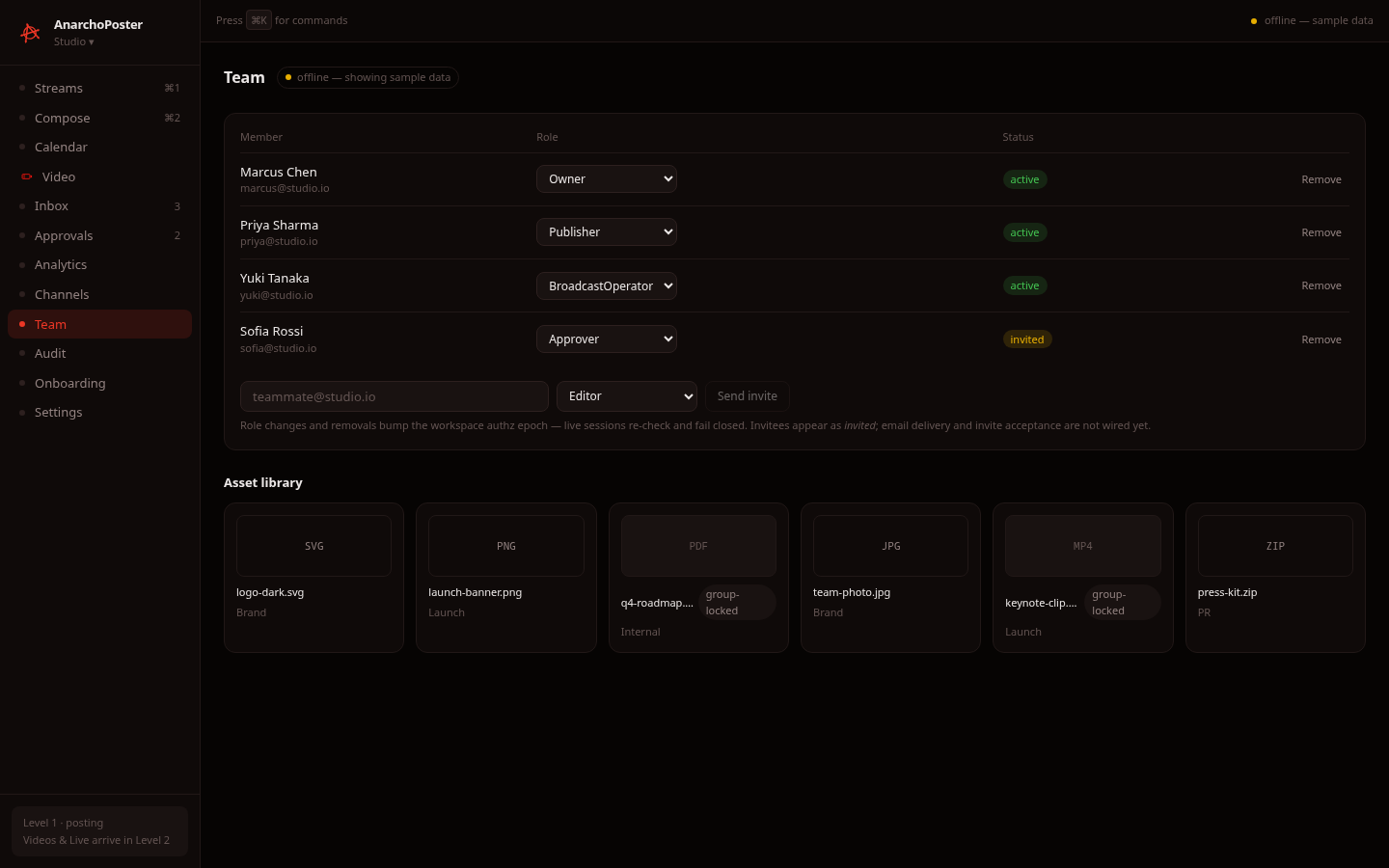

Asset library (lower half): sample data, always. These six fixture files are not your workspace's assets. Real video assets live on the Video screen.

---

9. Audit

Status: live · Export CSV is a stub.

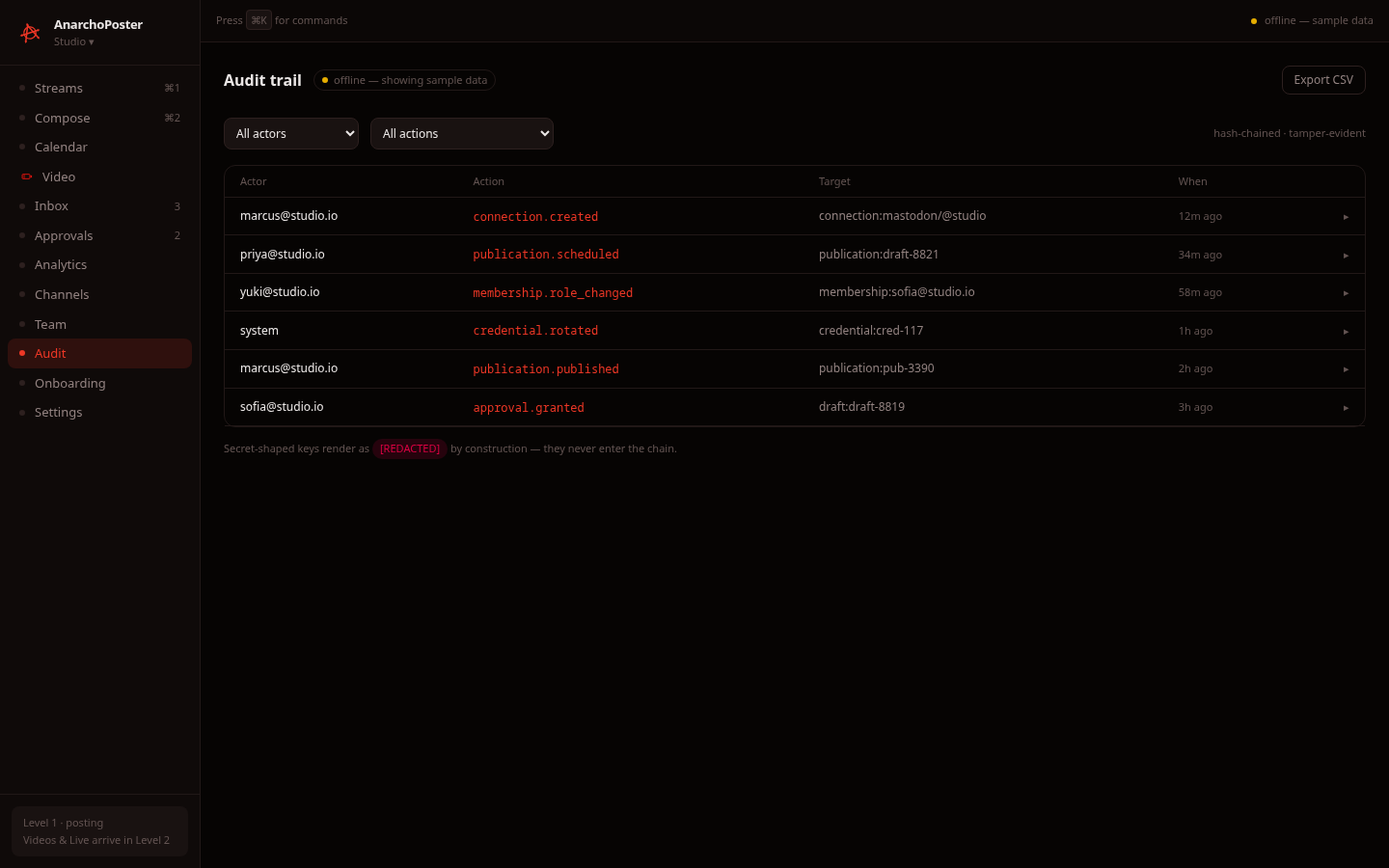

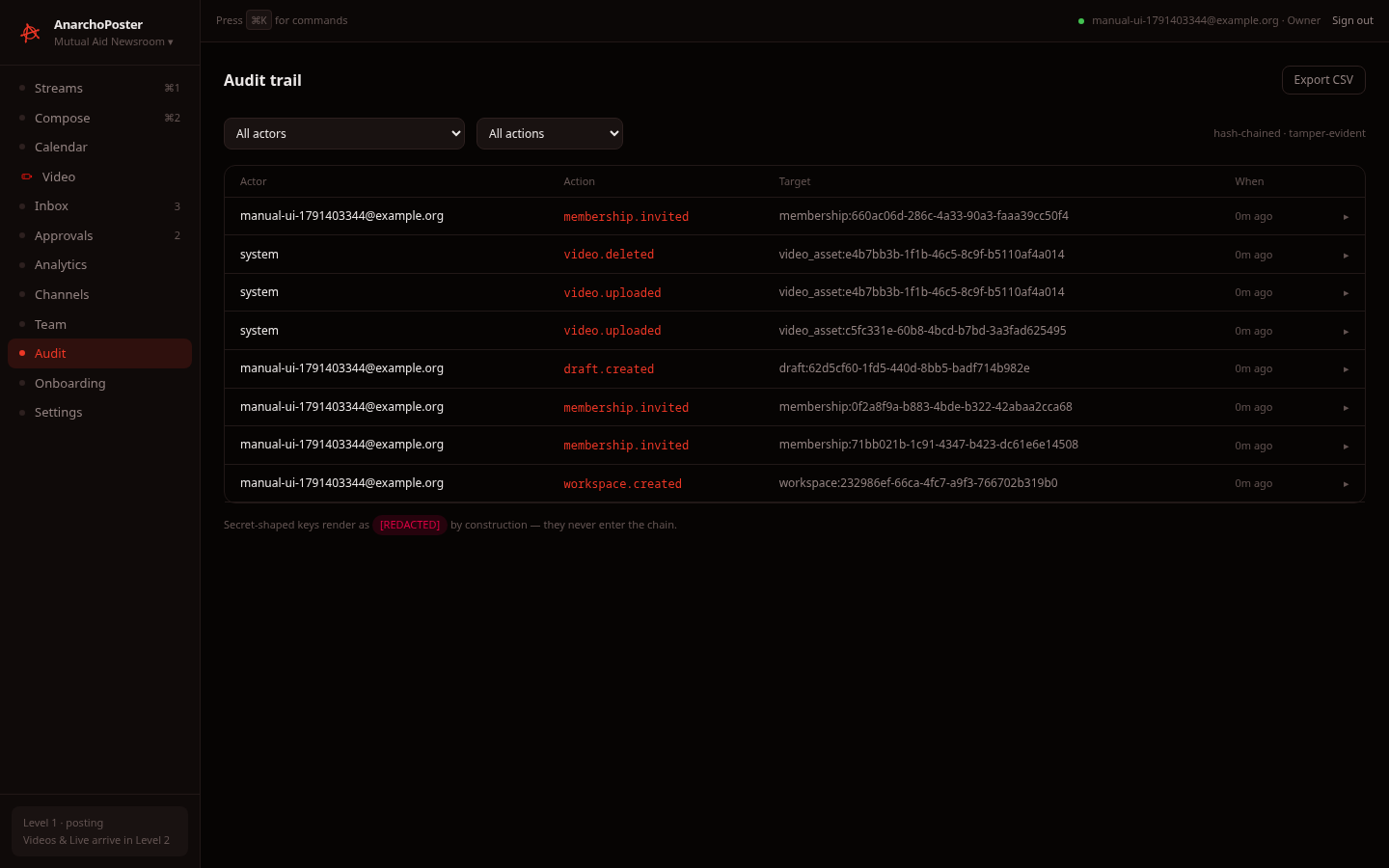

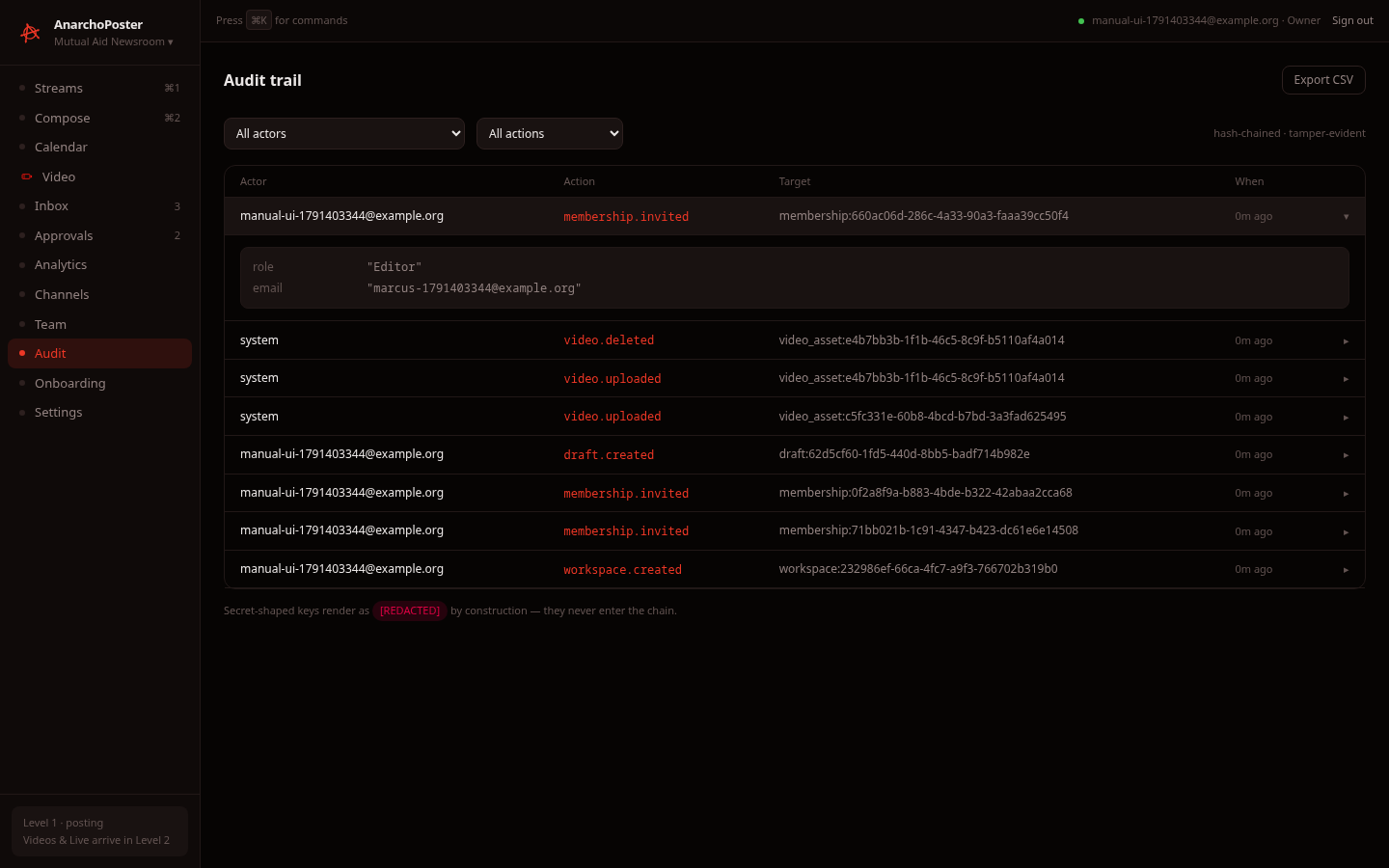

Trail	Expanded entry (diff)

• What it shows. Every workspace action, newest first: actor (email, or system for API-side events such as video.uploaded), action, target and age. We saw these actions recorded by our own test run:
  • workspace.created
  • membership.invited
  • draft.created / draft.submitted / draft.approved
  • video.uploaded / video.deleted
  • membership.role_changed / membership.removed / session.created (from the API-driven run)
• Diff. Click a row to expand its diff (for example role "Editor", email "…").
• Filters. The All actors / All actions dropdowns narrow the list. Verified: filtering to draft.approved cut 11 rows to 1. Load more pages through older entries (not exercised: our test workspaces never exceeded one page).
• Integrity. The trail is labelled hash-chained · tamper-evident, and secret-shaped keys render as [REDACTED].
• Export CSV has no handler. It is a stub.

---

10. Inbox

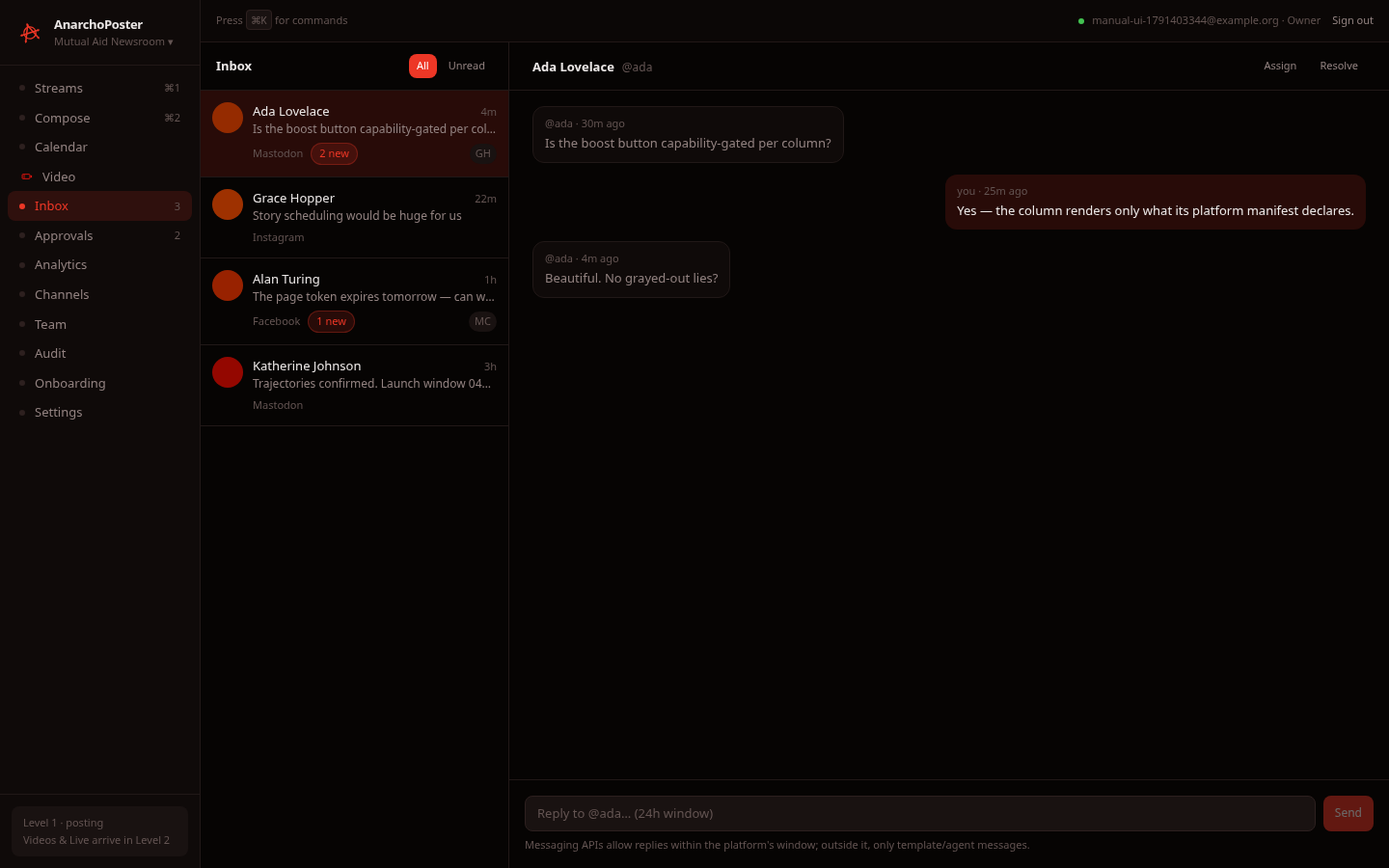

Status: sample data (always). Fixture conversations are shown even when signed in. DMs are Level 2: the connector getMessages() path isn't wired to the API. You can type in the reply box, but nothing is sent.

---

11. Calendar, Approvals, Analytics, Settings

Calendar is the scheduled-drafts list (live against the API when signed in). Each row shows its draft, its schedule, and — since the receipts feature — a dispatch receipt badge for any draft that has been dispatched: the latest attempt's outcome (completed green, failed red, in progress/ready amber), with an open ↗ link when the platform returned a post URL. Badges refresh on load, on schedule changes, every 30 s, and on Refresh. Drafts never dispatched show no badge.

Boosts (amplify). A boost reposts or quotes someone else's post through one of your connections, and it is governed like any publish: the draft must be approved, and if the connection's publish governance is an admin mode (see the admin guide §6.1), the boost is held with "awaiting publish approval" until admins approve the publish poll — then re-send it and it executes. On ungoverned connections a boost executes immediately.

Approvals / Analytics / Settings: Approvals renders the review queue; Analytics and Settings are live screens (workspace settings, sessions, connections).

---

12. Telegram

Status: connector-level only. There is no UI connect flow.

• What exists. The @tactical-media-broadcast-hub/connector-telegram package publishes to channels and amplifies by forwarding:
  • forwardMessage for a plain forward
  • copyMessage when you add commentary, because a forward cannot carry a caption
  • removing an amplification is supported
• Auth. Telegram uses a bot token created with @BotFather, not OAuth.
• Tests. Its contract test suite passes (34/34, run on 2026-10-07). The tests run against a mocked Bot API, not a real bot.
• In the UI. Telegram appears as a fixture column in Streams, a fixture card in Channels sample mode (capability amplifyShare, Amplify: Forward), and a simulated toggle in Onboarding. None of these talk to Telegram. There is no screen to enter a bot token, so a Telegram channel can't be connected from the app today.

---

13. Offline / sample-data mode

If the browser can't reach the API at all, the session bar shows offline — sample data, and the screens built on the API (Channels, Compose, Video, Team, Audit) render fixtures with an "offline — showing sample data" badge. Sample data is read-only: actions answer "Offline — sample data is read-only." or "Offline — sample mode, nothing was sent.". This mode is a development convenience, not a feature.

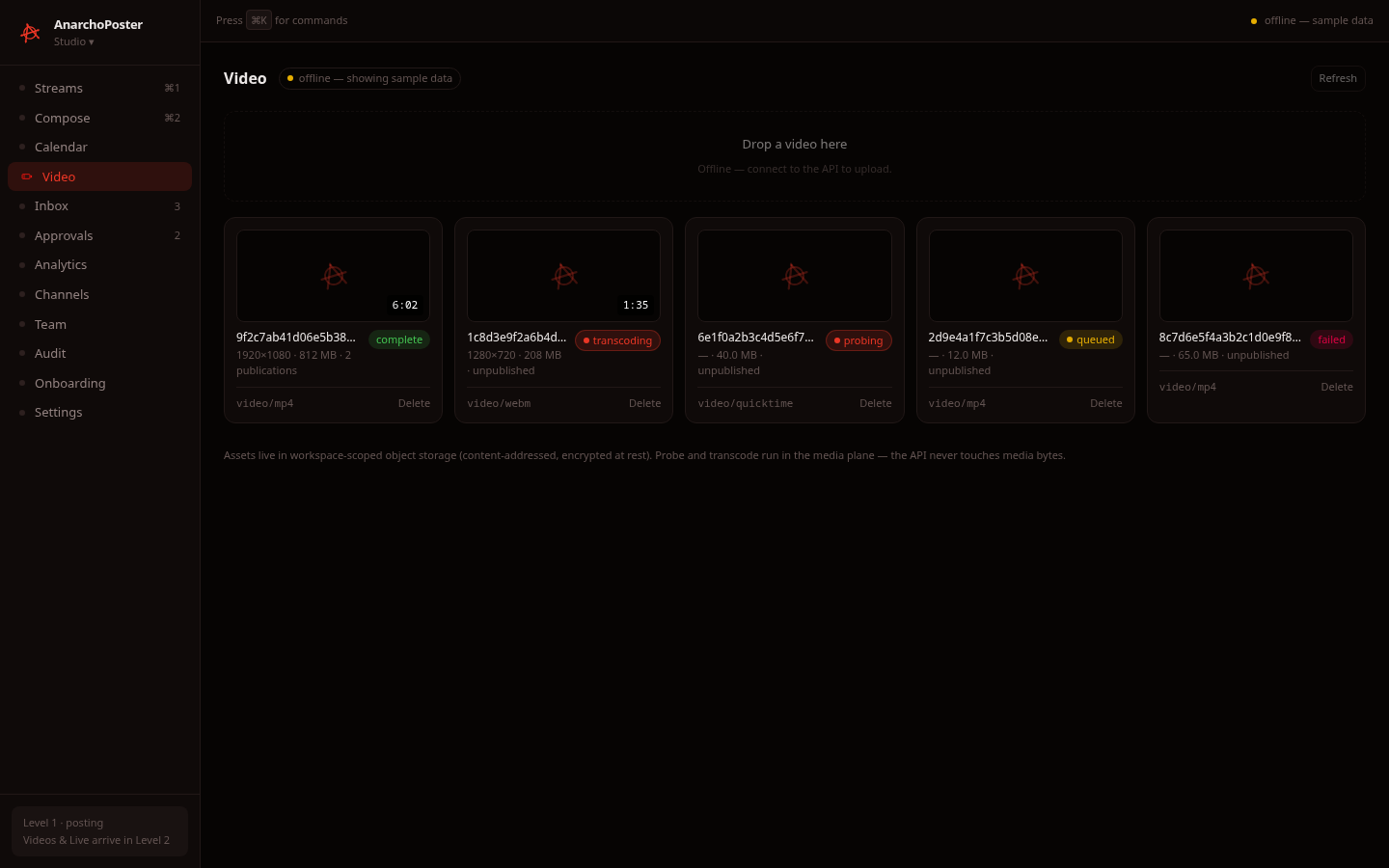

Channels	Video	Team	Audit

Compose and Onboarding in this mode: desktop-compose-sample.png, desktop-onboarding-sample.png.

---

14. Mobile

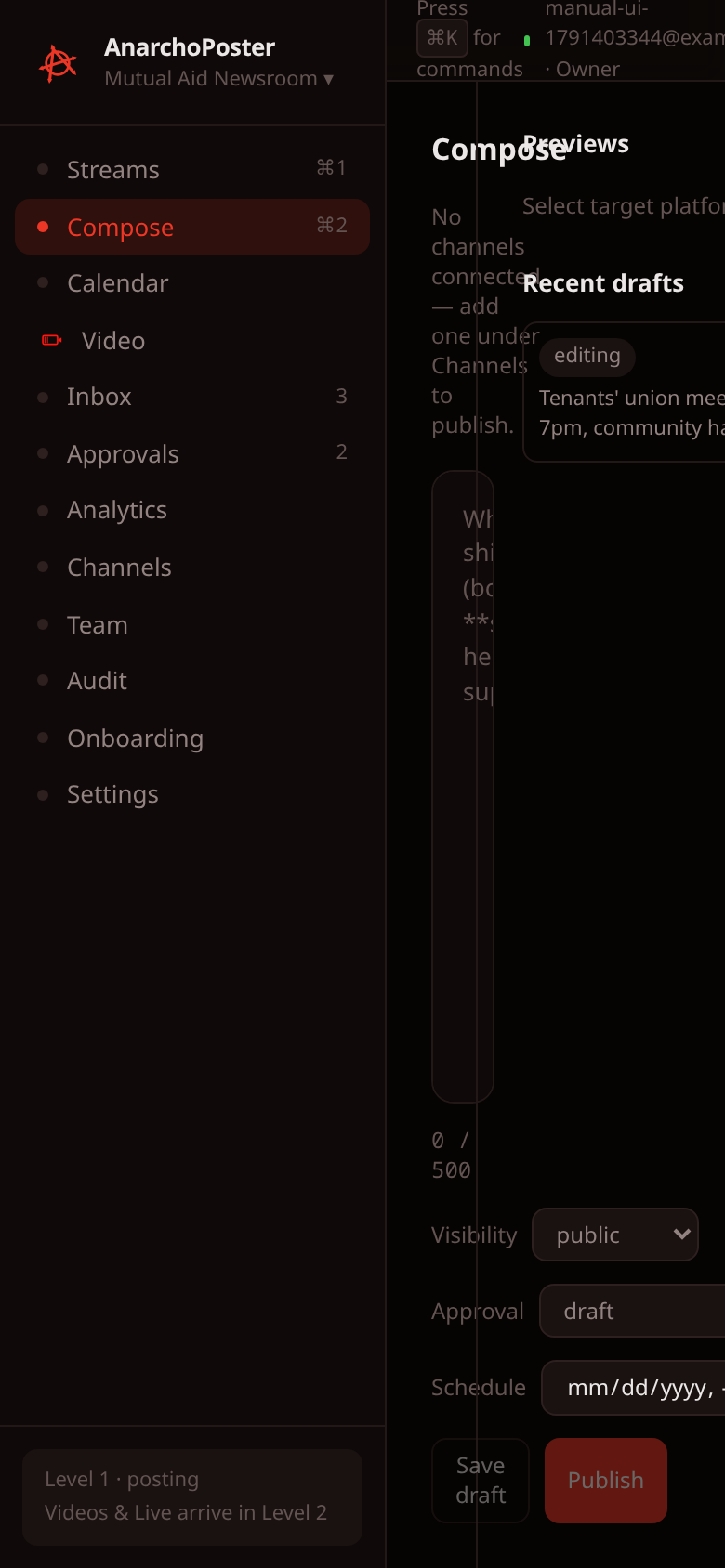

Status: a mobile PWA is in progress. Today, the mobile experience is the desktop site on a phone.

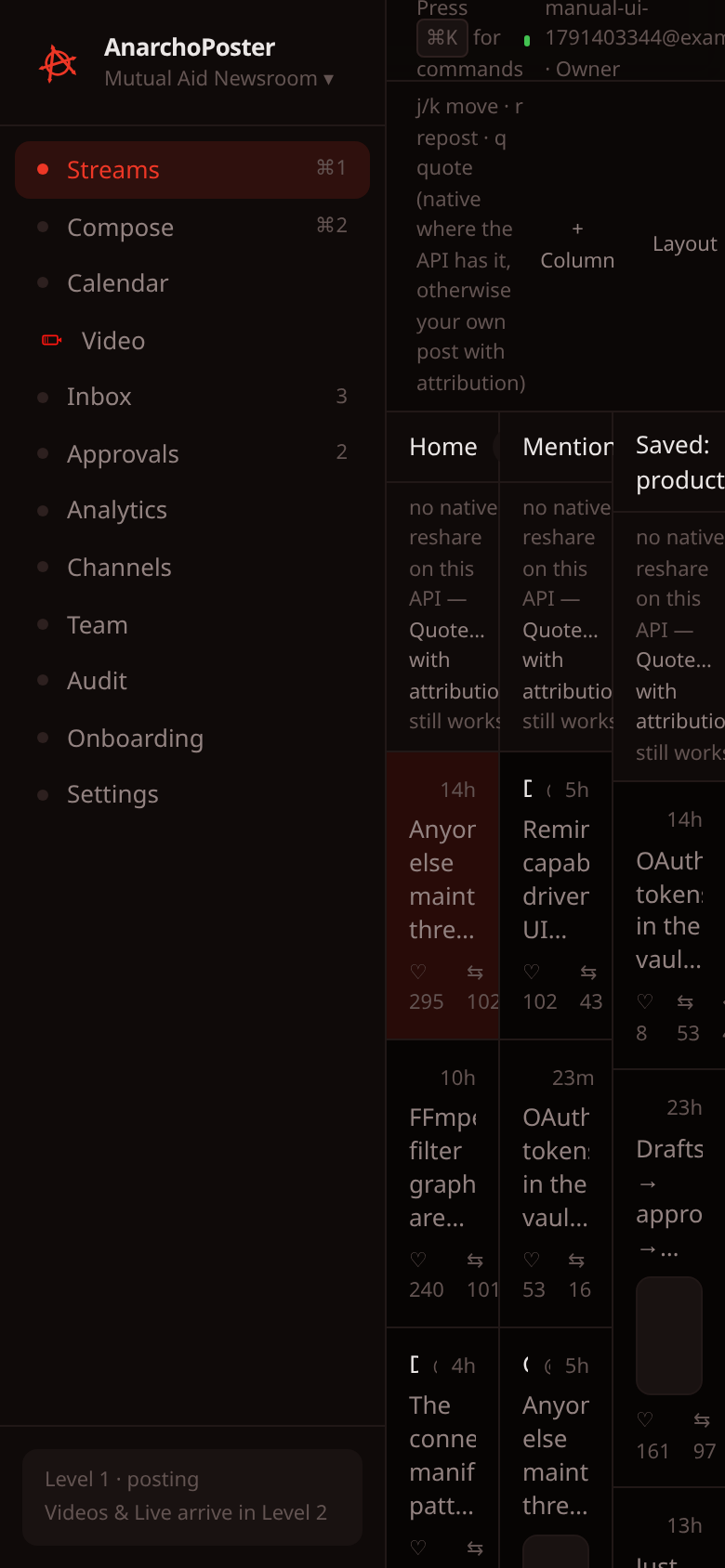

At 390×844 the full desktop sidebar stays fixed and takes roughly half the width. The content column is squeezed:

• Streams columns are a few characters wide.
• The Compose editor is collapsed to zero usable width. Our automated test couldn't click into it at all ("element is not visible").

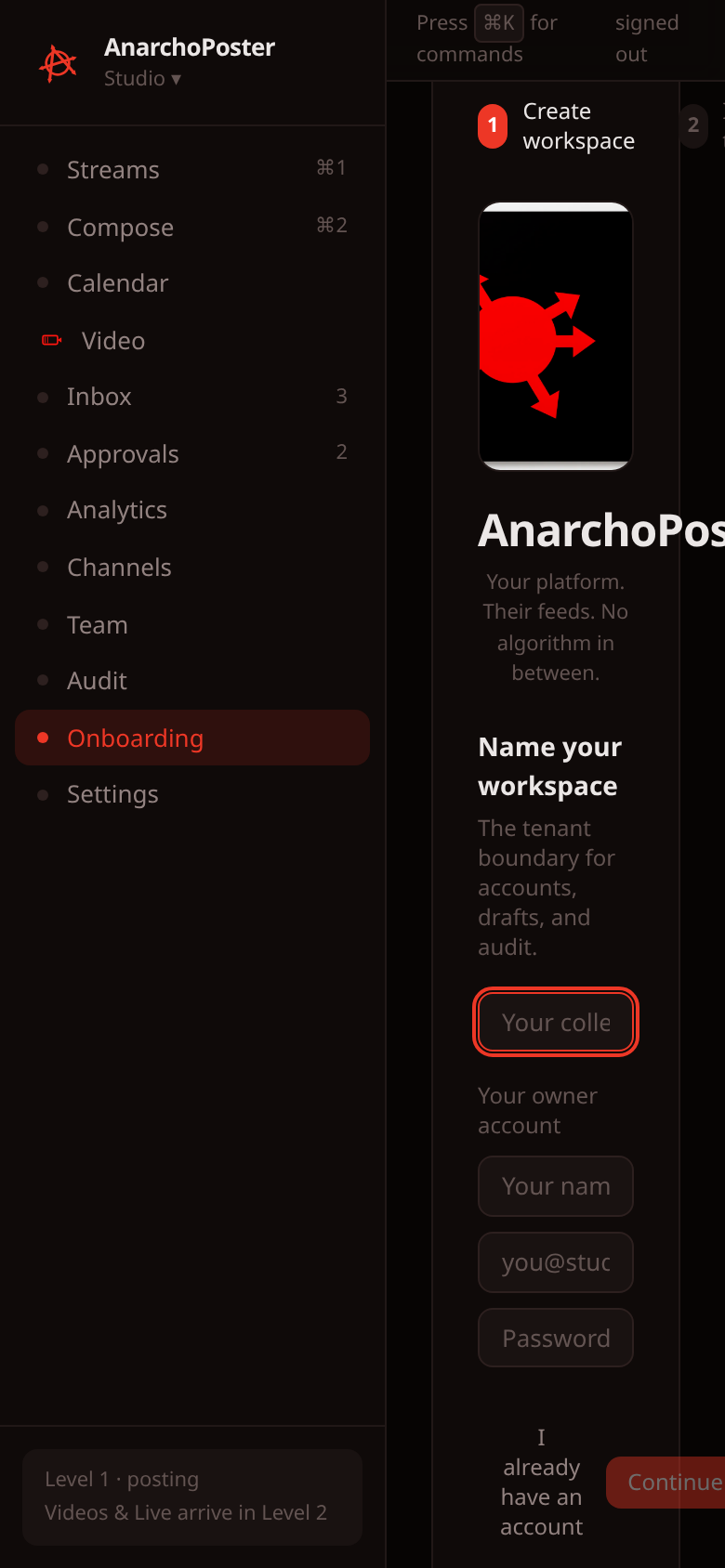

• The onboarding inputs are only 84 px wide, so registering or signing in on a phone is cramped at best.

Treat phones as read-only, at best until the PWA ships.

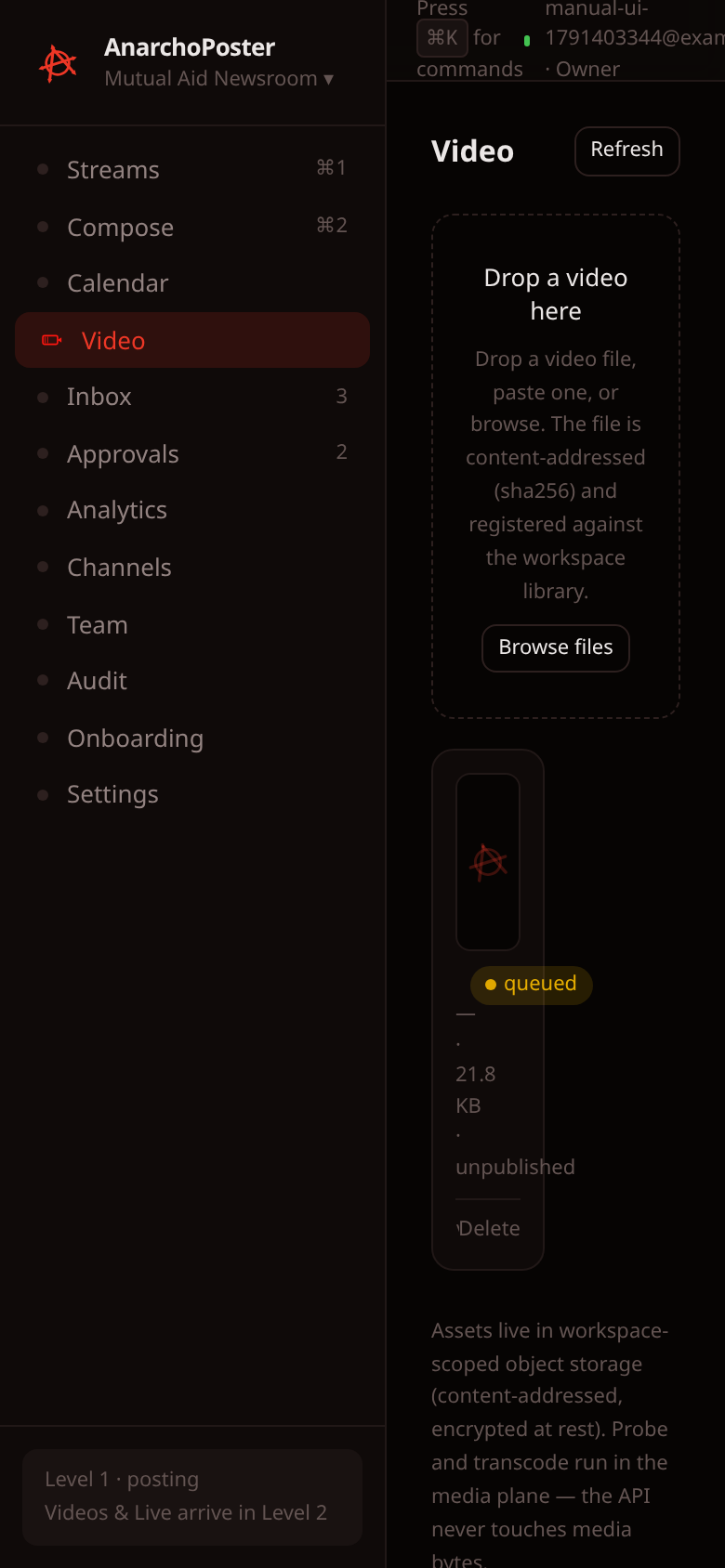

Streams	Compose	Video	Onboarding (register)

Other mobile captures:

• mobile-connections.png
• mobile-team.png
• mobile-audit.png
• mobile-inbox.png
• mobile-calendar.png
• mobile-approvals.png
• mobile-settings.png
• mobile-analytics.png
• mobile-onboarding.png (signed in)
• mobile-onboarding-signin.png

---

15. Capability table — what actually works

Feature	Status	Evidence
Register workspace + owner	live	UI registration and API POST /auth/register → 201
Sign in / wrong-password error	live	UI sign-in → /streams; wrong password → 401 "invalid email or password"
Sign out	live	Session bar button: token cleared from storage; next protected route → /onboarding
Auth gate (anonymous → onboarding)	live	Anonymous /streams redirected to /onboarding
Epoch fail-closed + auto reissue	live	Old token → 401 "authorization epoch stale" after a role change; client reissued automatically
Onboarding invite step	live	2 invites → 201 each; members appear as invited
Invite email delivery / acceptance	stub	Not wired (stated in the UI)
Onboarding "Connect accounts"	stub	Simulated local toggle
Streams columns, j/k/r/q	sample data (always)	Fixtures; repost/quote don't call any API
Streams + Column / Layout	stub	Inert buttons
Compose editor, counters, previews	live (client-side)	Exercised in the UI
Save draft / Recent drafts	live	UI "Draft saved." + GET /publishing/drafts
Draft submit → approve (state machine)	live (API only)	in_review → approved via the API
Schedule / publish to a platform	partial, not exercised end-to-end	No connection obtainable; schedule against an unknown connection → 404 as designed
Channels list	live (read-only)	GET /connections → [] for a new workspace
Connect / Reconnect / Remove channel	stub	Disabled when live ("OAuth connect flows arrive with the connector wiring phase")
Capacity chip + 24h popover	sample data in testing	Real rate-policy math; no live connection to show it on
POST /demo/connections (dev seed)	broken	Returns 500
Video register (upload)	live	2 UI uploads + 1 API upload → asset + job queued
Video library, detail drawer, refresh	live	GET /video, GET /video/:id/status
Video delete (confirm modal)	live	DELETE /video/:id → 200, "Video deleted.", audit video.deleted
Video probe / transcode / thumbnails	partial	Job stays queued 0%; bytes never reach storage (no ingest path)
Team list / invite / role change / remove	live	UI invite; API role change + remove
Team asset library	sample data (always)	Fixtures
Audit trail, diffs, filters	live	Our own actions recorded with actor/diff; action filter draft.approved narrowed 11 rows → 1
Audit Export CSV	stub	Button has no handler
Command palette (⌘K)	live (navigation only)	Opened and listed routes
Inbox	sample data (always)	Fixtures; reply doesn't send
Calendar	stub	Placeholder "Arrives with WP3"
Approvals screen	stub	Placeholder (approval API exists, see above)
Analytics	stub	Placeholder
Settings	stub	Placeholder
Telegram publish + forward-amplify	connector-level only	Contract tests 34/34 against a mocked Bot API; no UI connect (bot-token entry) flow
Other connectors (Mastodon, Bluesky, Discord, Slack, PeerTube…)	connector-level only	Not exercised here; none connectable from the UI
Offline sample-data mode	sample data	API blocked → fixtures + "offline" badge
Mobile	in progress	Desktop site on a phone; Compose unusable at 390px

---

Generated from a verification run; details, logs and the screenshot inventory are in runs/manual/screenshots-manual-report.md.
